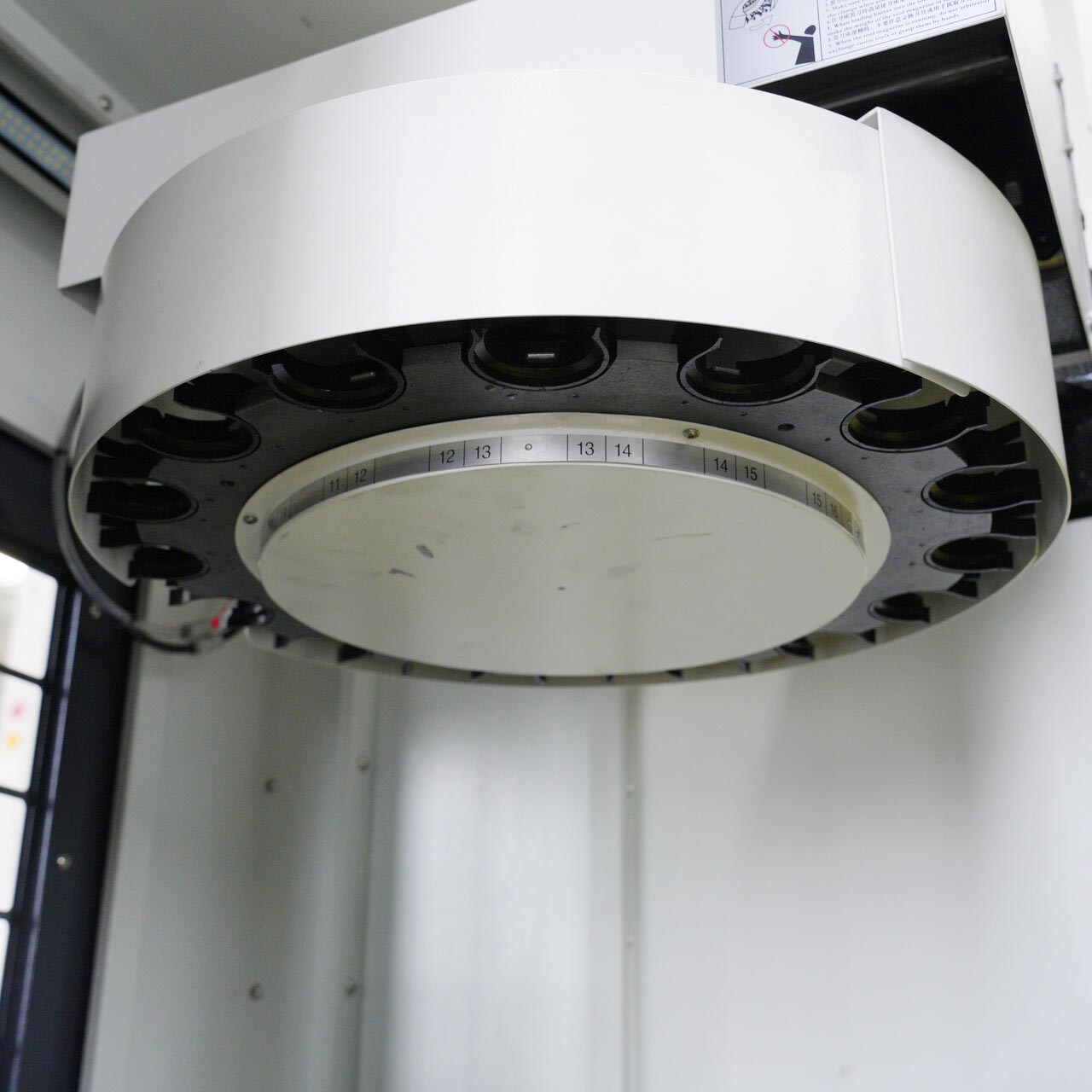

Disc Tool Magazine

It can automatically switch tools between different machining processes without manual intervention, achievingmulti-process machining in one clamping。

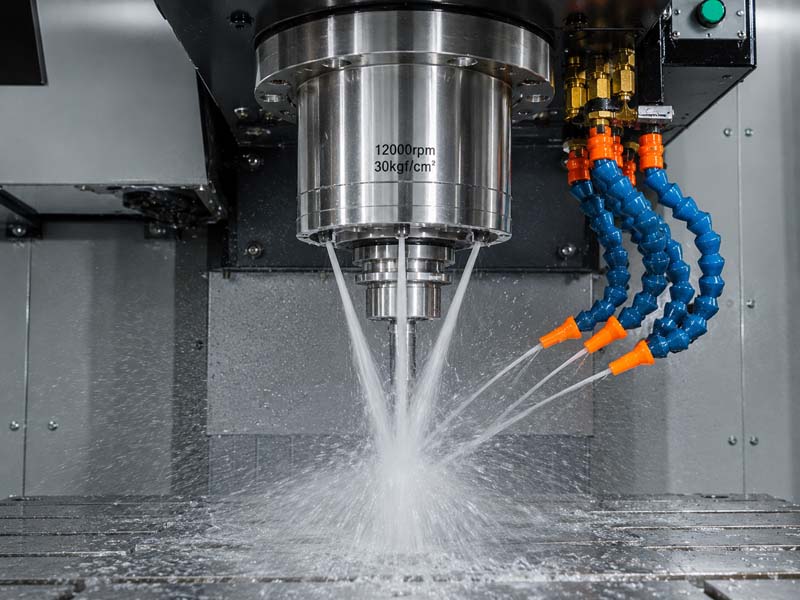

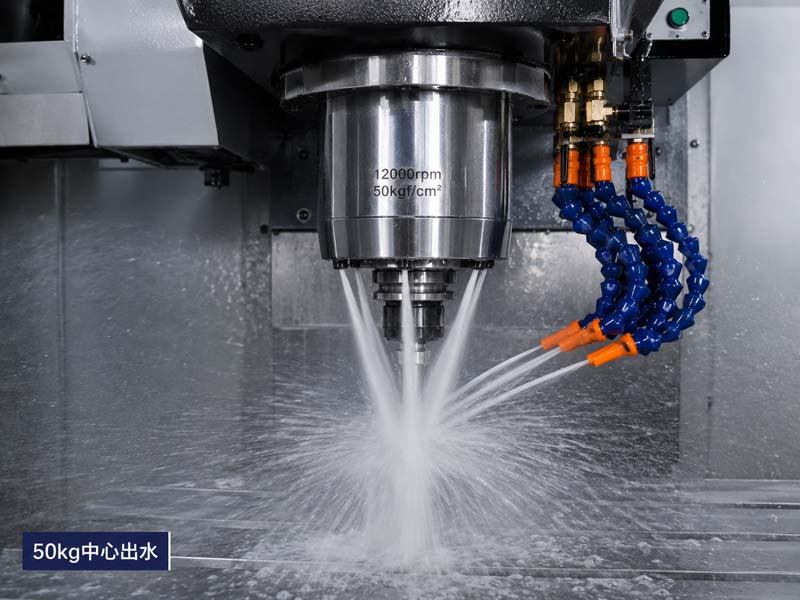

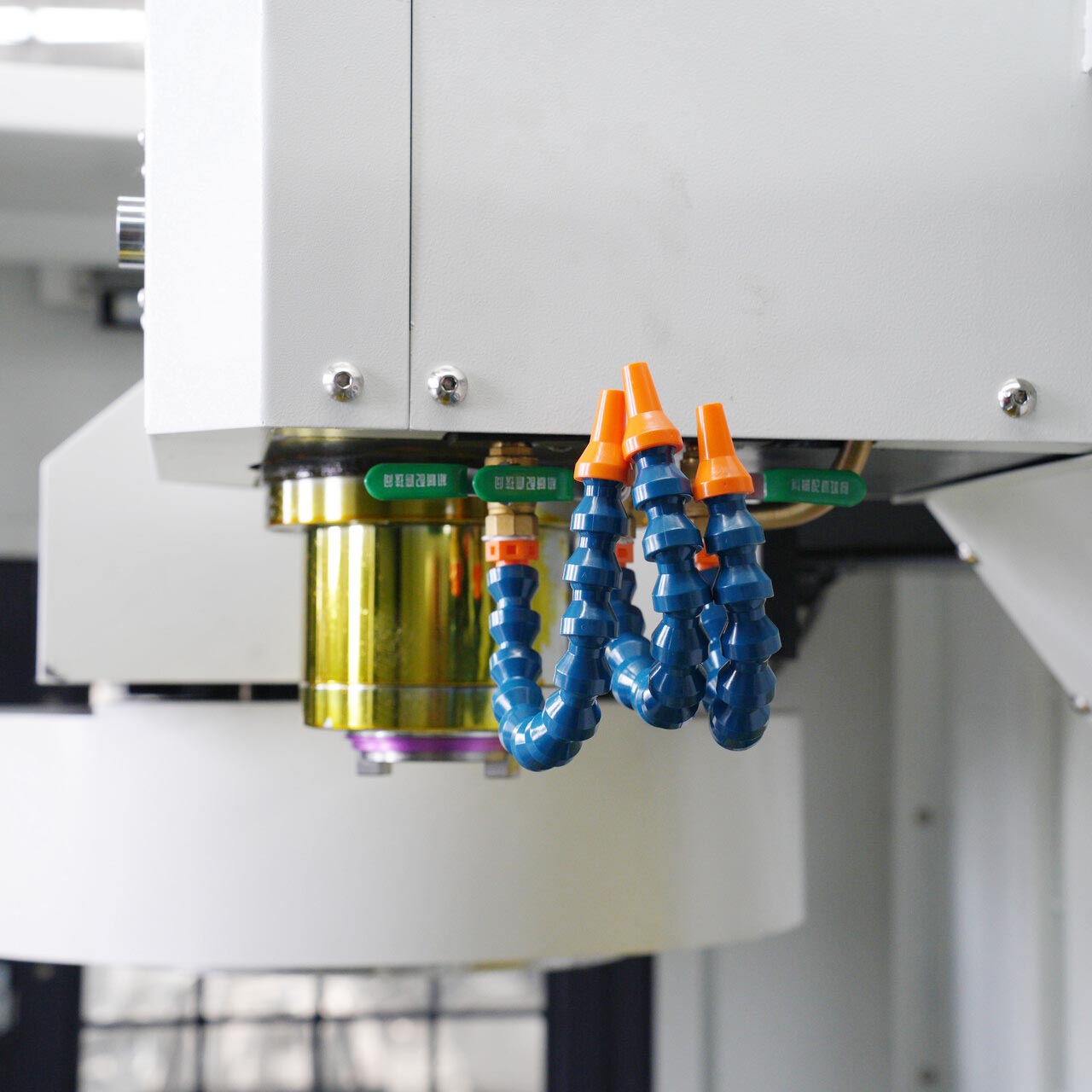

Spindle Cooling / Cutting Fluid Pipeline

• The role of cutting fluid is to cool the tool and workpiece, lubricate the cutting area, flush away chips, and prevent tool overheating and workpiece thermal deformation.
• This "multi-path cooling" design is a standard configuration for vertical machining centers, capable of adapting to the needs of different tools and machining processes.

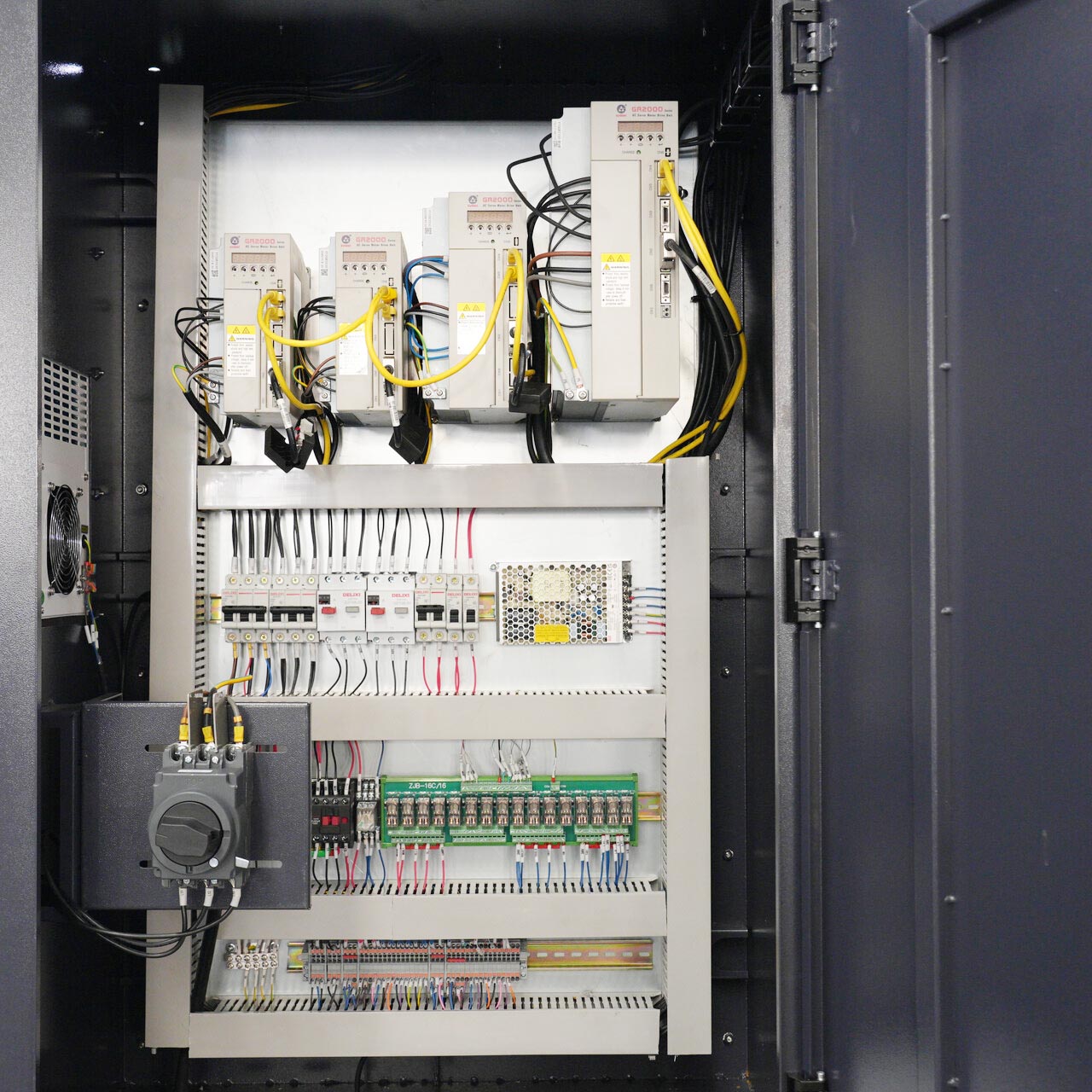

Electrical Control Cabinet

• The wiring and heat dissipation of the electrical cabinet directly affect the stability and service life of the machine tool.
• The layout in the image adopts a layered and modular design, separating strong and weak currents to reduce electromagnetic interference, which is a typical configuration for domestic high-end machining centers.

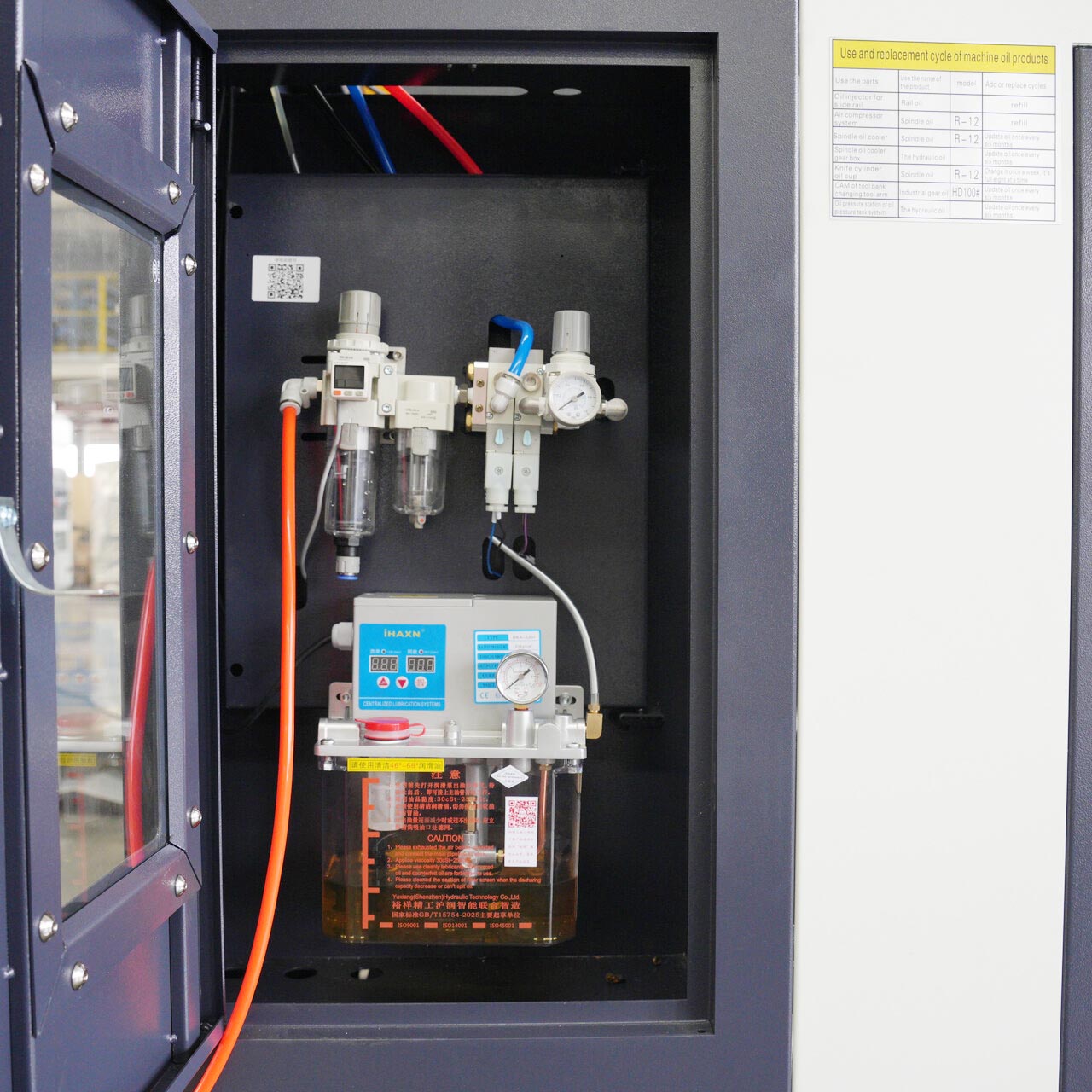

Automatic Lubrication Pump

The machine tool is equipped with an intelligent centralized automatic lubrication system that can automatically supply oil to the guide rails, lead screws, and key transmission components according to a set cycle, achieving continuous and stable lubrication,

effectively reducing wear and improving machining accuracy and equipment service life.
