From high-quality raw materials to precision machining, every process is strictly controlled to create high-precision, high-strength core components for lathes.
Suitable for large-scale mass production, precision parts processing, and custom non-standard parts, deeply engaged in various industries.
| Item | Unit | Specification |
| Maximum Swing Over Bed | mm | Φ550 |
| Maximum Cutting Diameter | mm | Φ440 |
| Machining Diameter Under Turret | mm | Φ300 |
| Maximum cutting length | mm | 500 |
| X-axis travel | mm | 260 |
| Z-axis travel | mm | 600 (effective machining length 500) |

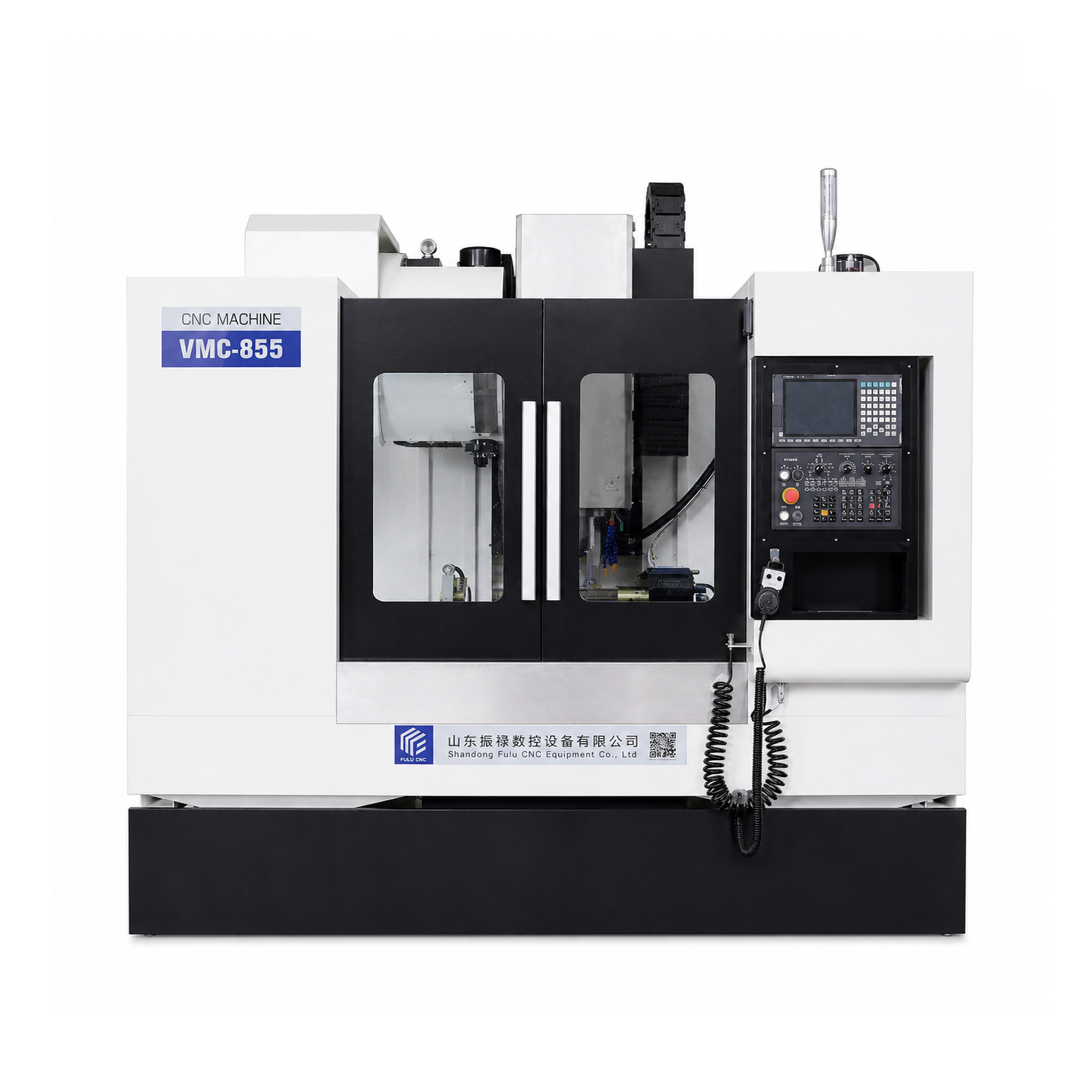

| Machine model: VMC855 | Unit | Specification |
| Table size | mm | 1000x550 |
| X/Y/Z axis travel | mm | 800/550/550 |
| Distance from spindle face to table | mm | 120-670 |
| Distance from spindle center to column | mm | 590 |
| Maximum load on table | Kg | 600 |
| T-slot on table | mm | 5-18x90 |
| X/Y/Z axis rapid feed | m/min | 36/36/32 |
| X/Y/Z guide rail width specification | mm | RGH35/45/45 roller linear guide |
| X/Y/Z screw specification | mm | φ4016 |
| Positioning accuracy | mm | ±0.008 |
| Repeat positioning accuracy | mm | ±0.006 /300 |
| Minimum positioning unit | mm | ±0.001 |
| Four-axis accuracy | mm | ≤0.01 |
| Maximum spindle speed | rpm | 8000 (spindle ring spray) |
| Spindle taper | mm | BT40-150 |
| Disc mechanical arm tool magazine | pcs | 24T |
| Controller system | / | GSK25i |
| X/Y/Z axis motor power | Nm | 15/15/22 |
| Spindle motor power | Kw | 11 |
| Machine weight approximately | Kg | 5000 |
| Dimensions | mm | 2600x2400x2650 |
| NO | Configuration Content | NO | Configuration Content |
| 1 | Cutting Cooling System | 13 | Machine Internal Cleaning Device: Chip Blowing Gun |
| 2 | Automatic Lubrication System | 14 | Manual Pulse Generator: Handwheel |
| 3 | Cutting Blowing Device | 15 | External Network Transmission Interface |
| 4 | Spindle and Servo Overload System Protection | 16 | Three-Axis Telescopic Protective Cover (Full Cover Inner Sheet Metal) |
| 5 | Three-Color Alarm Light | 17 | External Protective High-Quality Painted Sheet Metal |
| 6 | Horizontal Adjustment Bolt and Shim | 18 | Rigid Tapping |
| 7 | Electrical Box Heat Exchanger | 19 | Accuracy Inspection Certificate |
| 8 | Three-Axis Screw Pre-Tensioning Device | 20 | Electrical Manual |
| 9 | Program Storage | 21 | User Manual |
| 10 | Spindle Ring Water Spray | 22 | Program Operation Manual |
| 11 | Reserved for Adding Four-Axis Interface | 23 | Front Chip Removal |
| 12 | Internal Work Light |
| 10000/12000rpm spindle speed |
| 30kg/50kg/70kg central water outlet |
| Renishaw tool setter |
| 170/200/250/300mm fourth axis |
| 125/170/210/250mm fifth axis |

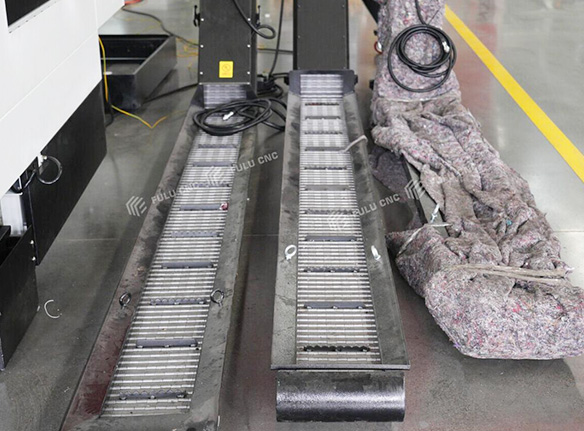

| chain-type chip conveyor |
1.X, Y, Z axis travel: 800x550x550mm
2. The spindle rotation method is belt drive with a maximum speed of: 8000 RPM (spindle ring spray)
3. The standard configuration of the tool magazine is a disc-type 24-tool magazine, meeting customer needs.
4. The head assembly is a heavy-duty box structure, reinforced with internal ribs for high rigidity.
5. The spindle cutting method uses a pneumatic mechanism, ensuring uniform force on the spindle during cutting, extending the spindle's
service life.
6. The electrical cabinet adopts an internal isolation design, separating the heat-generating parts of the controller, using a heat exchanger for cooling at the front to prevent external dust from entering the electrical box; a fan is used at the rear to cool the heat plate.
用风扇为扇热板散热。
7. The three axes use high-precision screws, combined with precision nut preloading and rear-end pre-tensioning devices,
to ensure that the backlash and thermal deformation of the machine remain low over time.
8. The X, Y, Z axes (Z axis has 6 sliders) use roller-type linear guides, which have high rigidity,
low noise, can perform rapid displacement, and achieve optimal cycle accuracy.
9. All finished products undergo laser positioning correction and circular testing to ensure optimal positioning accuracy and servo characteristics, and the machine is subjected to strict inspection measures before shipment to ensure long-term stability of all precision aspects.
Learn More

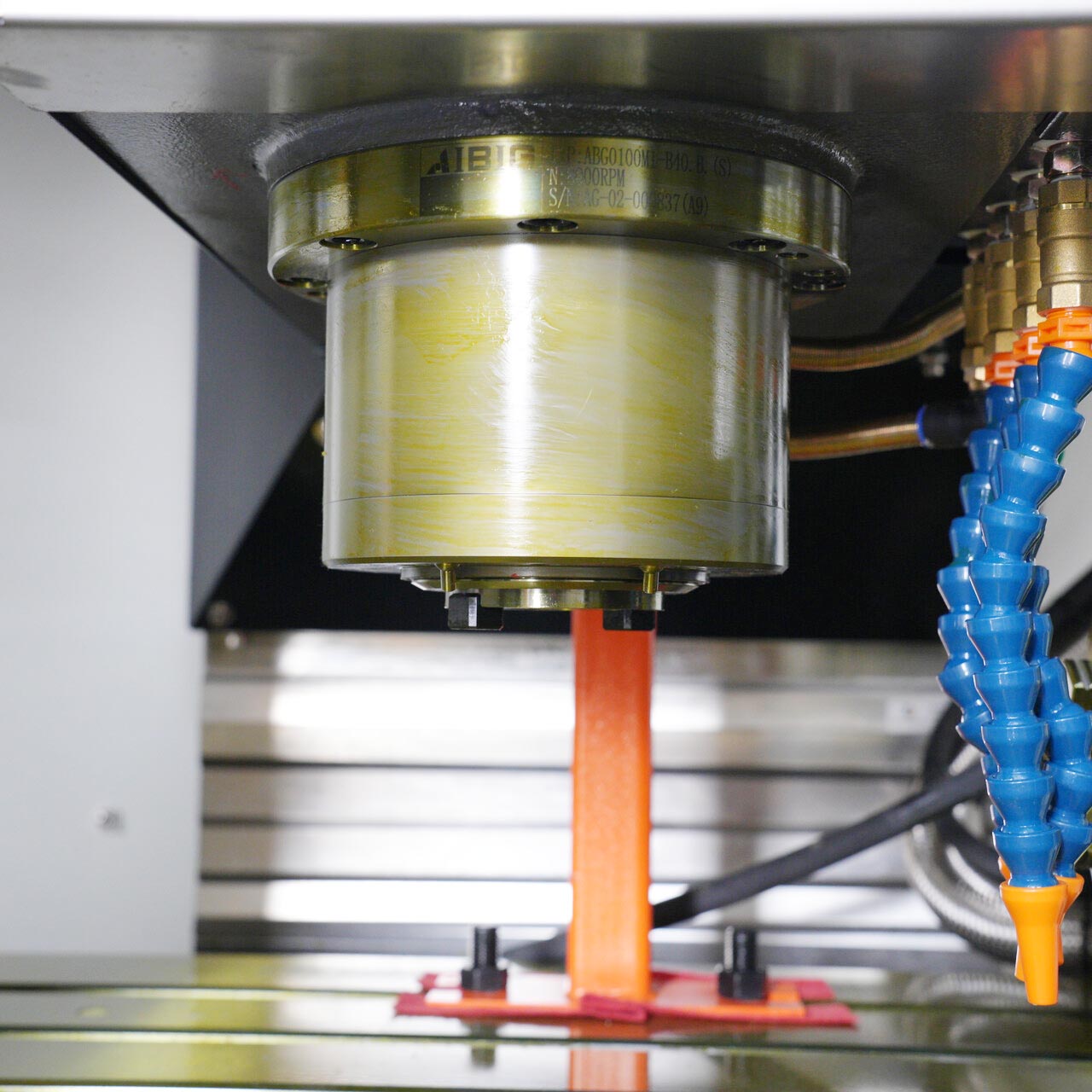

Spindle
The maximum speed of this spindle can reach
12000 RPM, which belongs to a medium-high speed spindle configuration, balancing the rigid cutting of steel parts and the high-speed precision machining needs of aluminum parts and molds.Contact Us

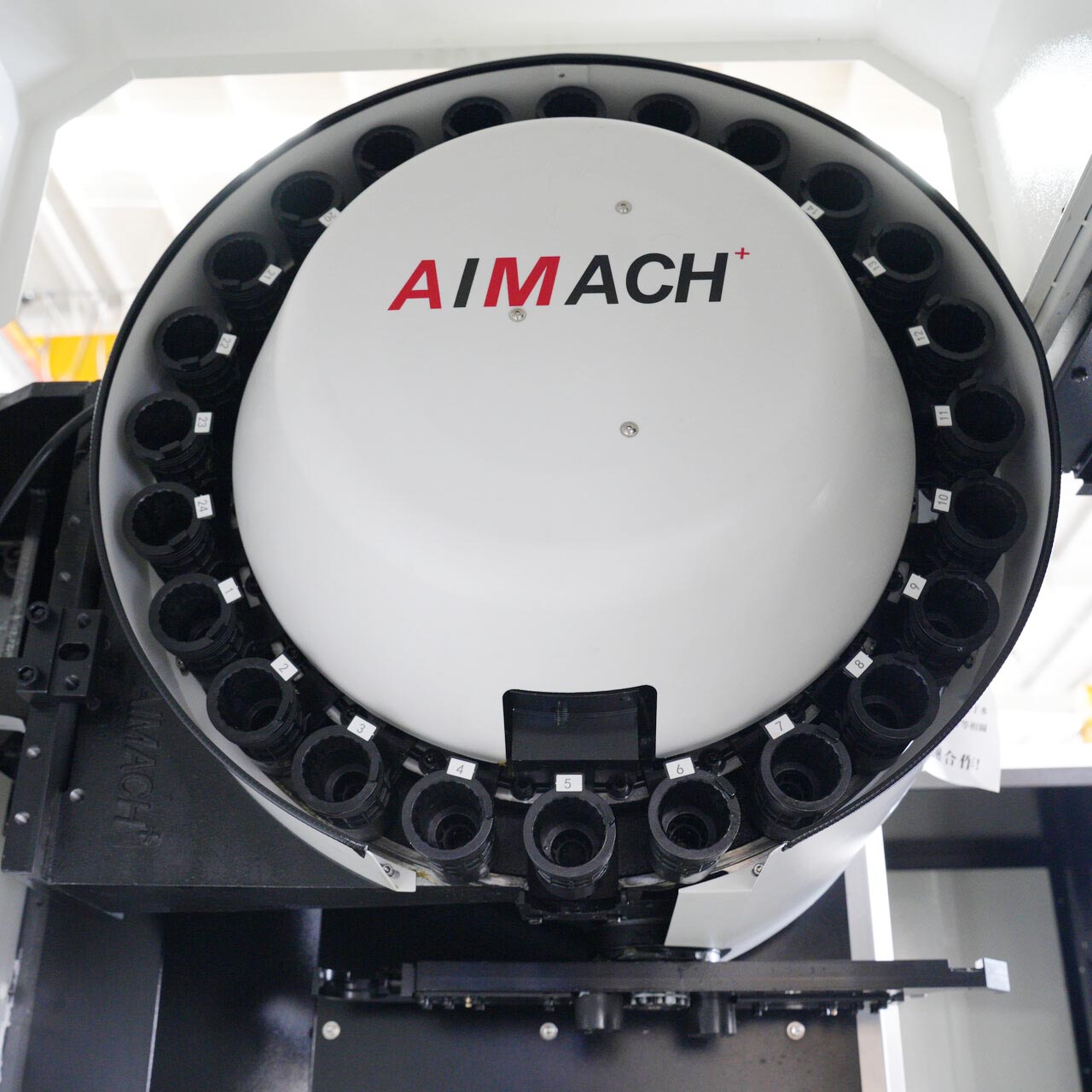

Automatically switches tools between different machining processes without manual intervention, achieving
multi-process machining in one clamping.Contact Us。

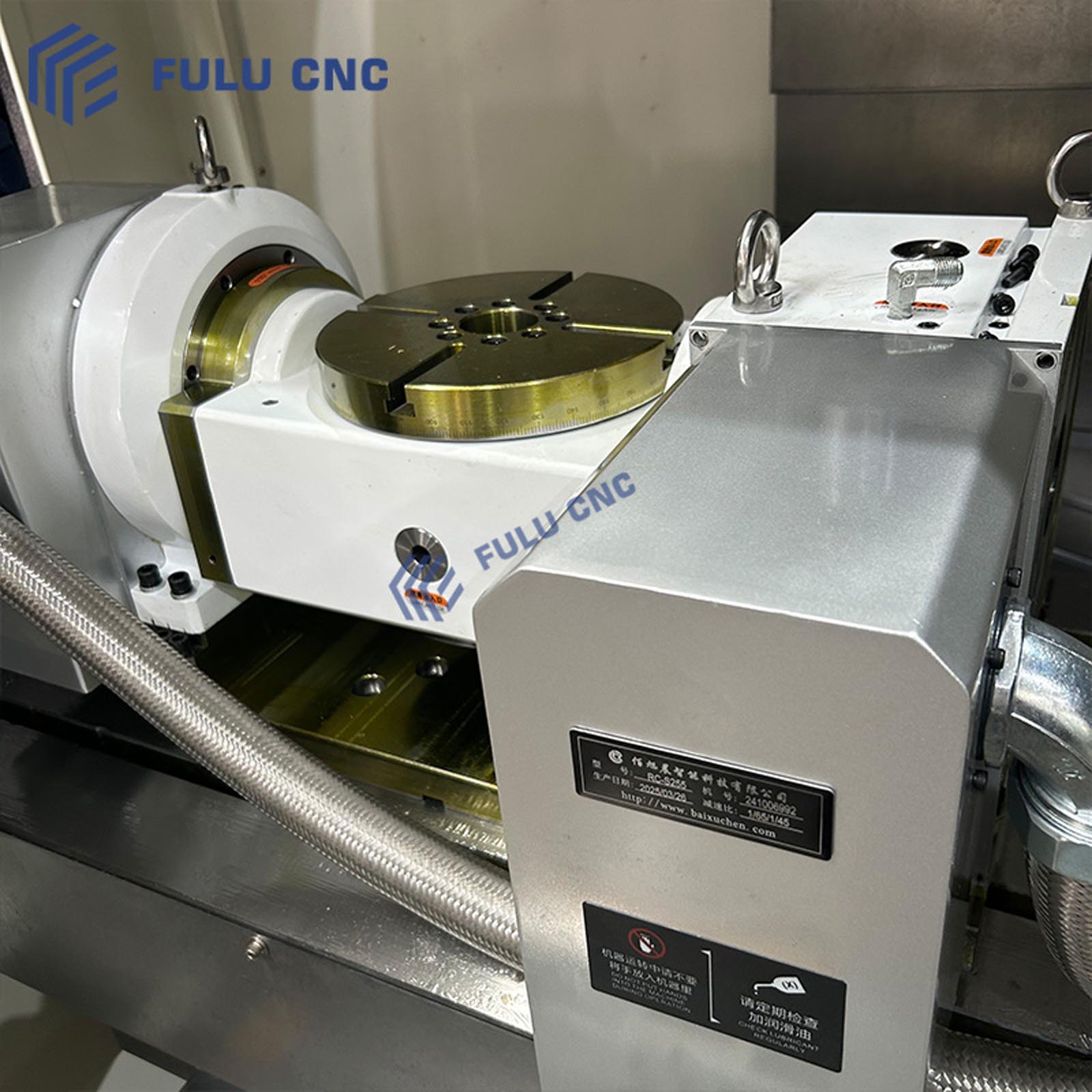

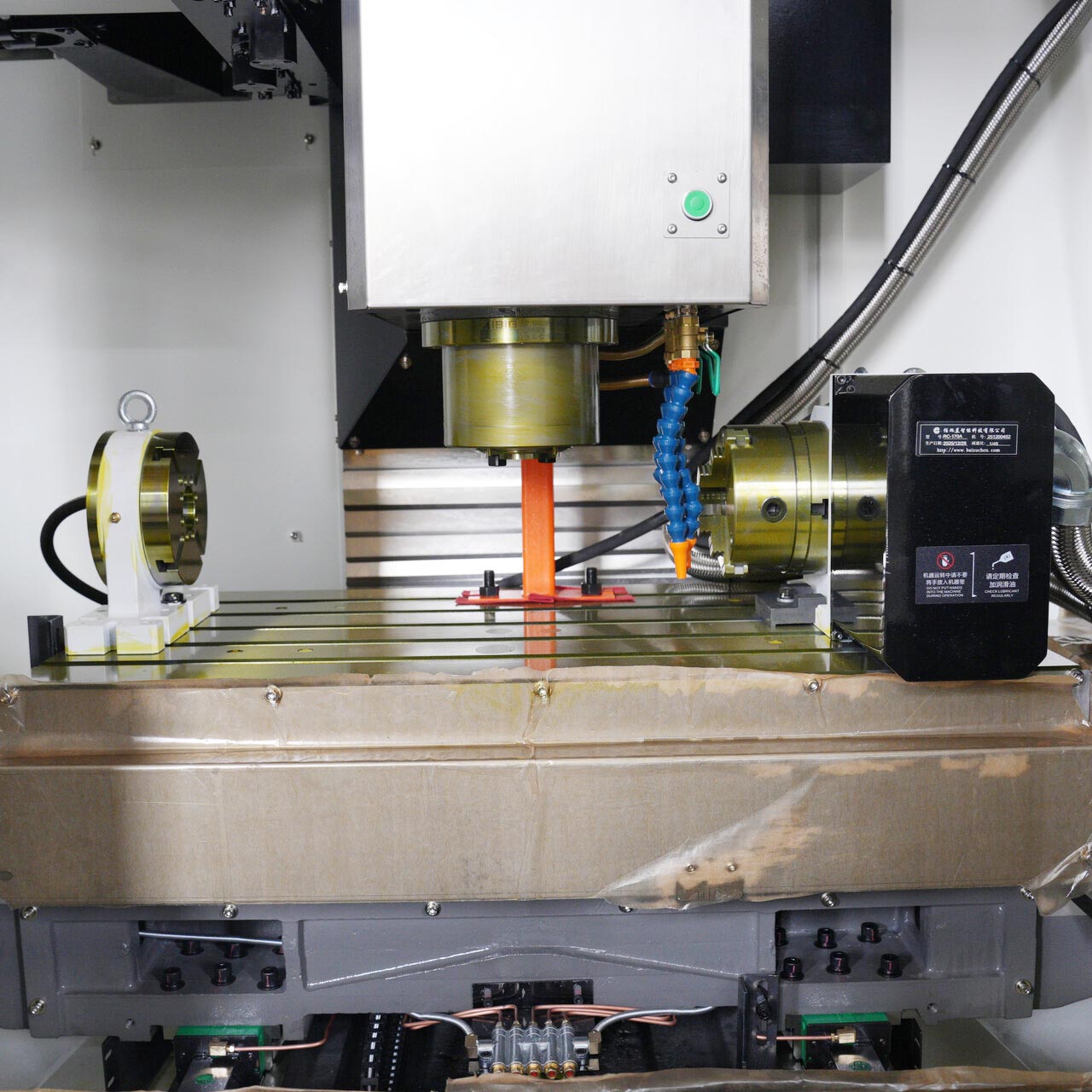

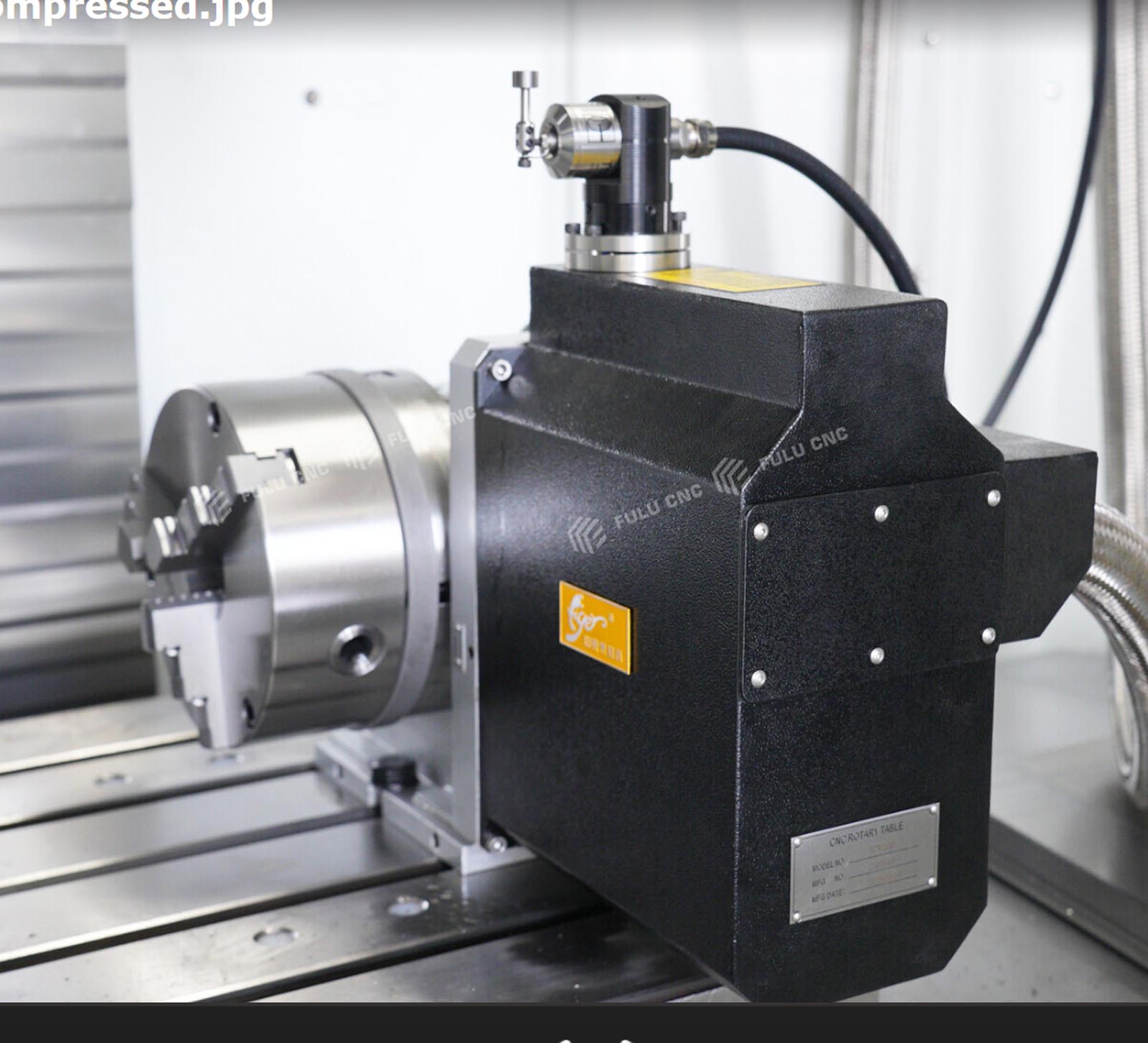

This is a
vertical machining center work area equipped with a fourth-axis CNC rotary table and tailstock.On the right side is the CNC indexing rotary table, and on the left side is the tailstock support device, which can achieve multi-surface machining of shaft-type, flange-type, and complex multi-faceted parts in one clamping, significantly improving machining accuracy and production efficiency.Contact Us

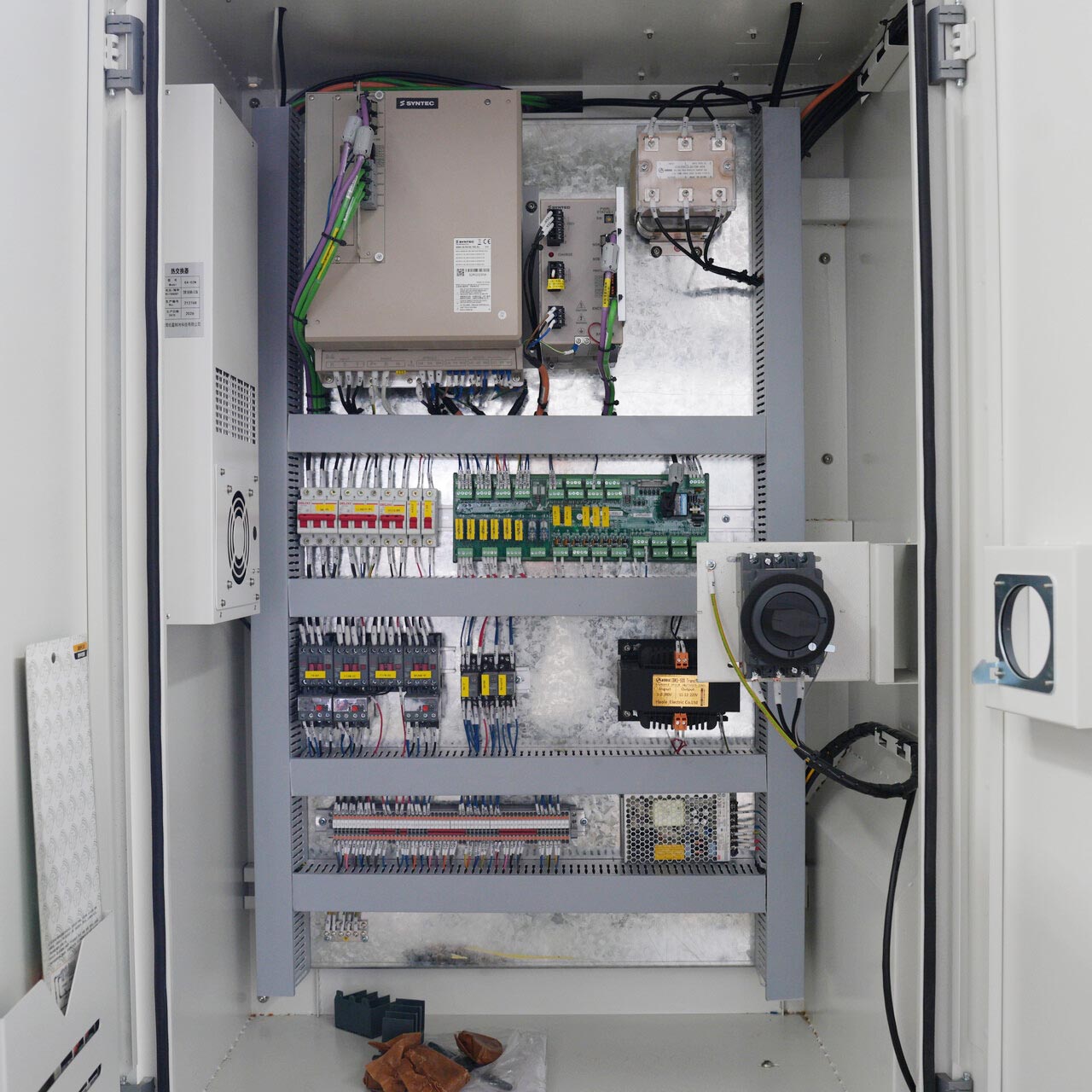

The wiring and heat dissipation of the electrical cabinet directly affect the stability and service life of the machine tool.

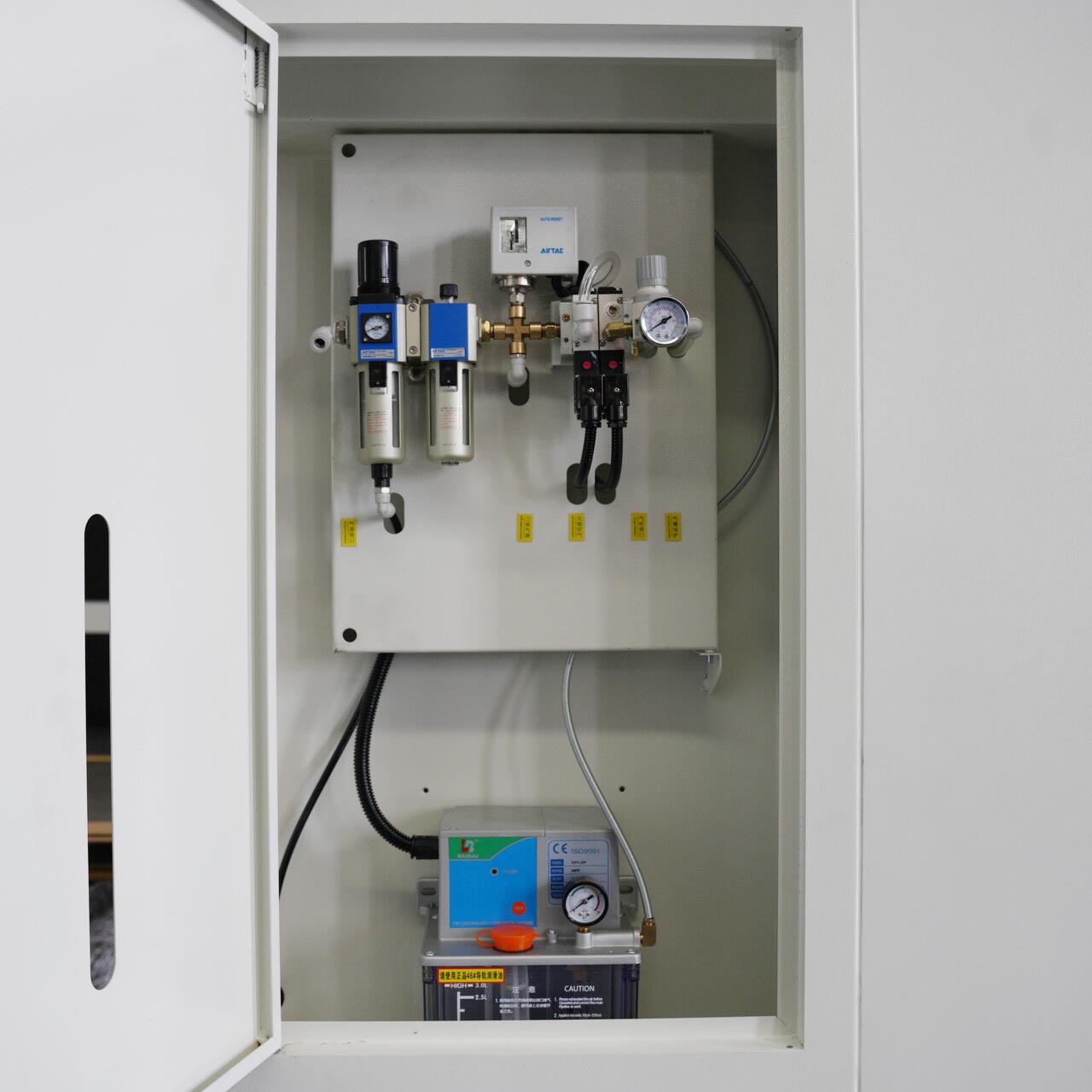

The machine tool is equipped with an intelligent centralized automatic lubrication system, which can automatically supply oil to the guide rails, screws, and key transmission components according to a set cycle, achieving continuous and stable lubrication,
effectively reducing wear and improving machining accuracy and equipment service life.
Contact Us

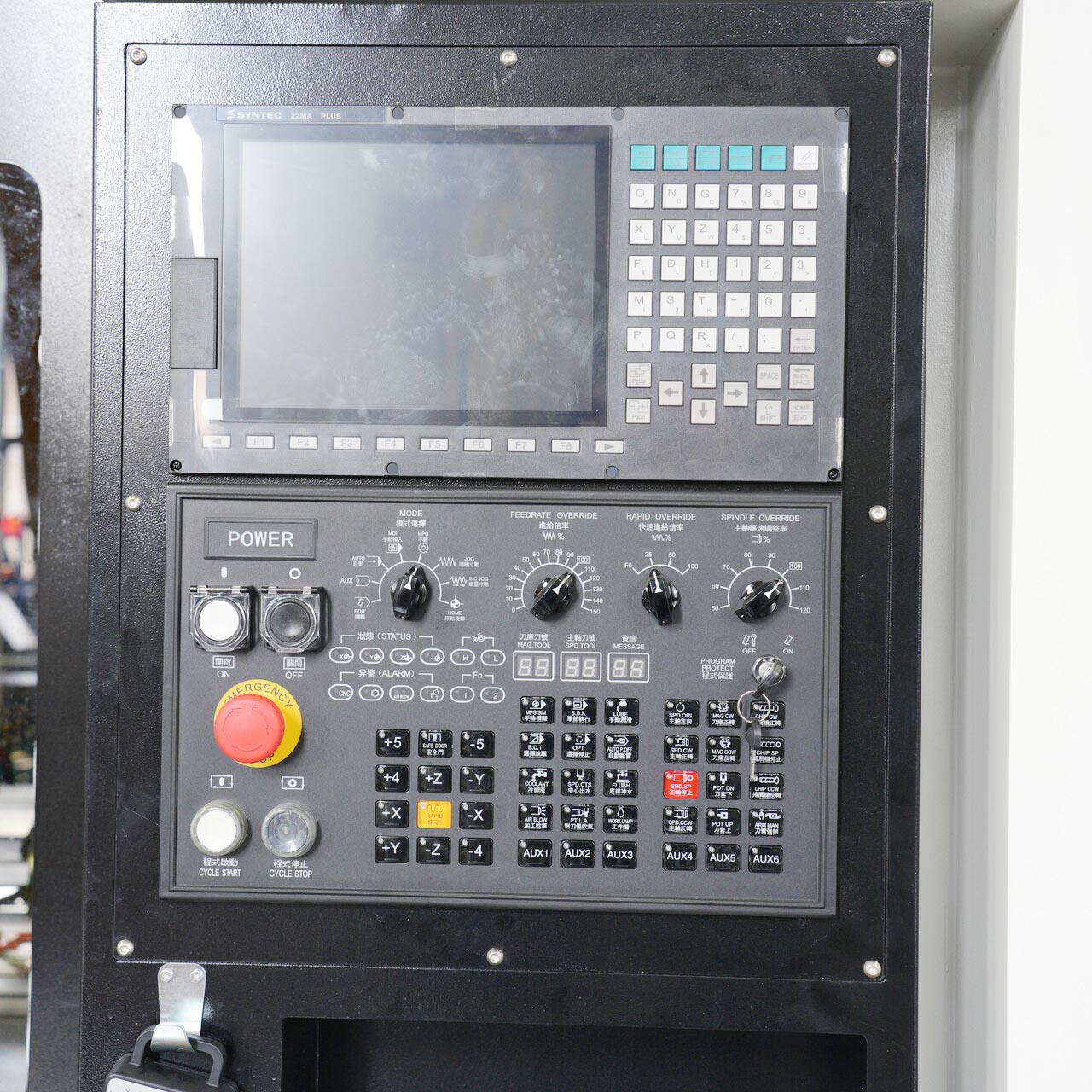

Optional Control System
