From high-quality raw materials to precision machining, every process is strictly controlled to create high-precision, high-strength core components for lathes.
Suitable for large-scale mass production, precision parts processing, and custom non-standard parts, deeply engaged in various industries.
| Item | Unit | Specification |
| Maximum Swing Over Bed | mm | Φ550 |
| Maximum Cutting Diameter | mm | Φ440 |
| Machining Diameter Under Turret | mm | Φ300 |
| Maximum cutting length | mm | 500 |
| X-axis travel | mm | 260 |
| Z-axis travel | mm | 600 (effective machining length 500) |

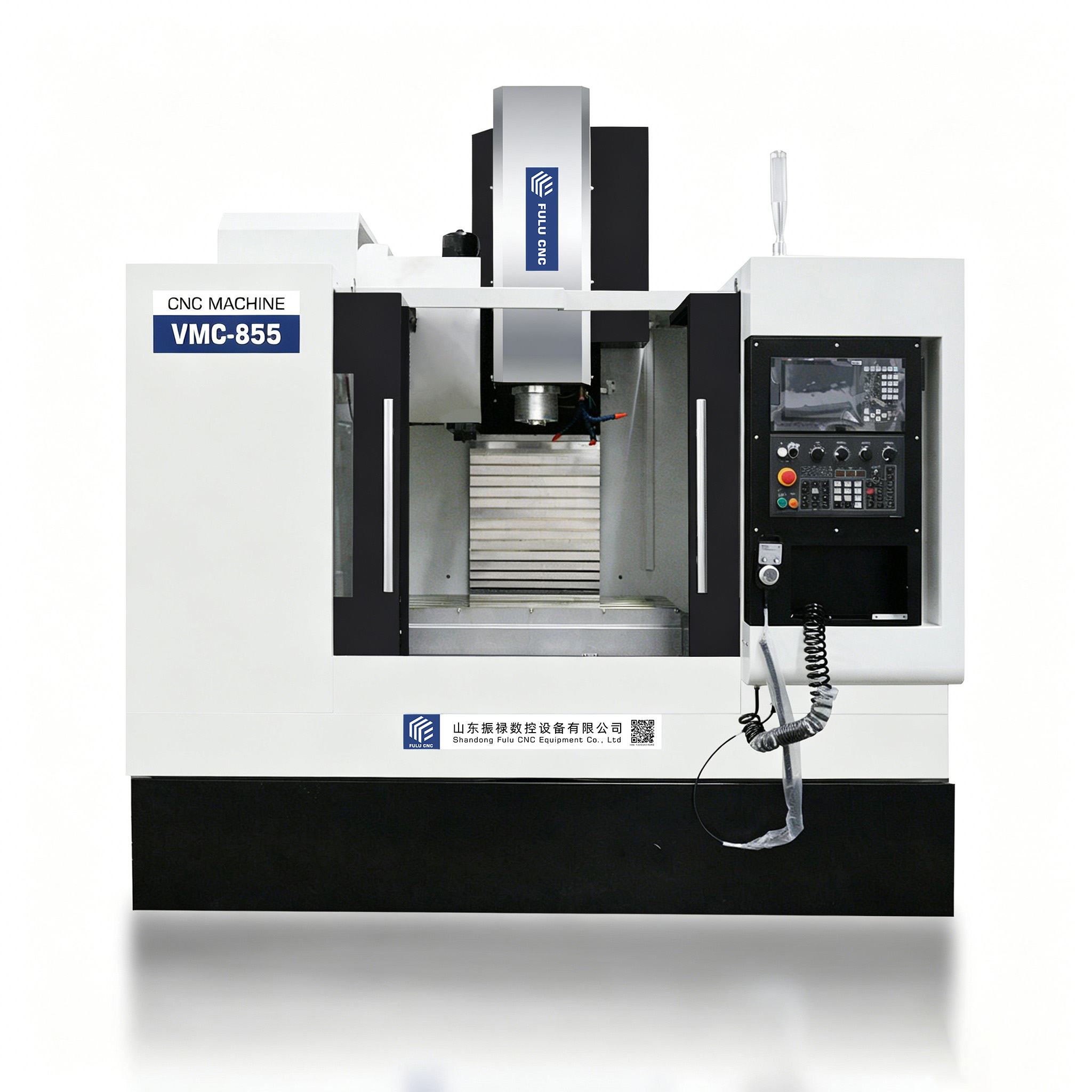

| Machine model: VMC855 | Unit | Specification |
| Table size | mm | 1000x550 |
| X/Y/Z axis travel | mm | 800/550/550 |
| Distance from spindle end face to table | mm | 120-670 |
| Distance from spindle center to column | mm | 590 |
| Maximum load on table | Kg | 600 |
| T-slot on table | mm | 5-18x90 |
| X/Y/Z axis rapid feed | m/min | 36/36/32 |
| X/Y/Z guide rail width specification | mm | RGH35/45/45 roller linear guide |
| X/Y/Z screw specification | mm | φ4016 |
| Positioning accuracy | mm | ±0.008 |
| Repeat positioning accuracy | mm | ±0.006 /300 |
| Minimum positioning unit | mm | ±0.001 |
| Four-axis accuracy | mm | ≤0.01 |
| Maximum spindle speed | rpm | 8000 (spindle ring spray) |
| Spindle taper | mm | BT40-150 |
| Disc mechanical arm tool magazine | pcs | 24T |

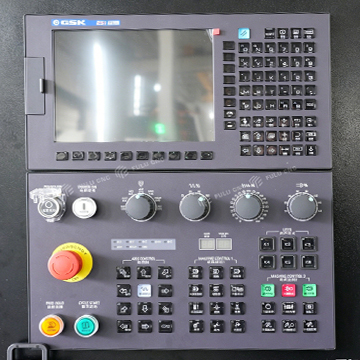

| Controller system | / | GSK25i |
| X/Y/Z axis motor power | Nm | 15/15/22 |
| Spindle motor power | Kw | 11 |
| Machine weight approximately | Kg | 5000 |
| Dimensions | mm | 2600x2400x2650 |
| NO | Configuration Content | NO | Configuration Content |
| 1 | Cutting Cooling System | 13 | Machine Internal Cleaning Device: Chip Blowing Gun |
| 2 | Automatic Lubrication System | 14 | Manual Pulse Generator: Handwheel |
| 3 | Cutting Blowing Device | 15 | External Network Transmission Interface |
| 4 | Spindle and Servo Overload System Protection | 16 | Three-Axis Telescopic Protective Cover (Full Cover Inner Sheet Metal) |
| 5 | Three-Color Alarm Light | 17 | External Protection High-Quality Baked Paint Sheet Metal |
| 6 | Horizontal Adjustment Bolt and Spacer | 18 | Rigid Tapping |
| 7 | Electrical Box Heat Exchanger | 19 | Precision Inspection Certificate |
| 8 | Three-Axis Screw Pre-Tensioning Device | 20 | Electrical Manual |
| 9 | Program Storage | 21 | User Manual |
| 10 | Spindle Ring Water Spray | 22 | Program Operation Manual |
| 11 | Reserved for Adding Four-Axis Interface | 23 | Front Chip Discharge |
| 12 | Internal Work Light |
| 10000/12000rpm spindle speed |
| 30kg/50kg/70kg central water outlet |

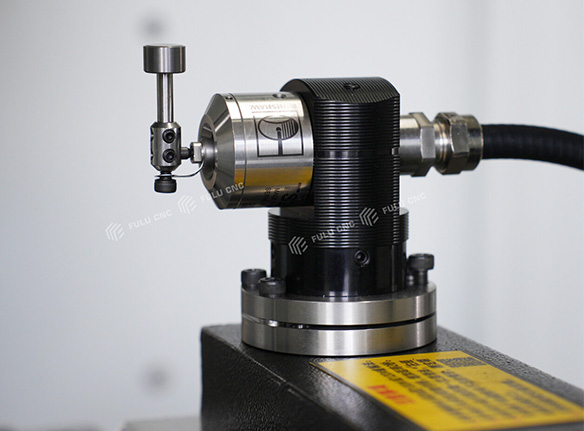

| Renishaw tool setter |

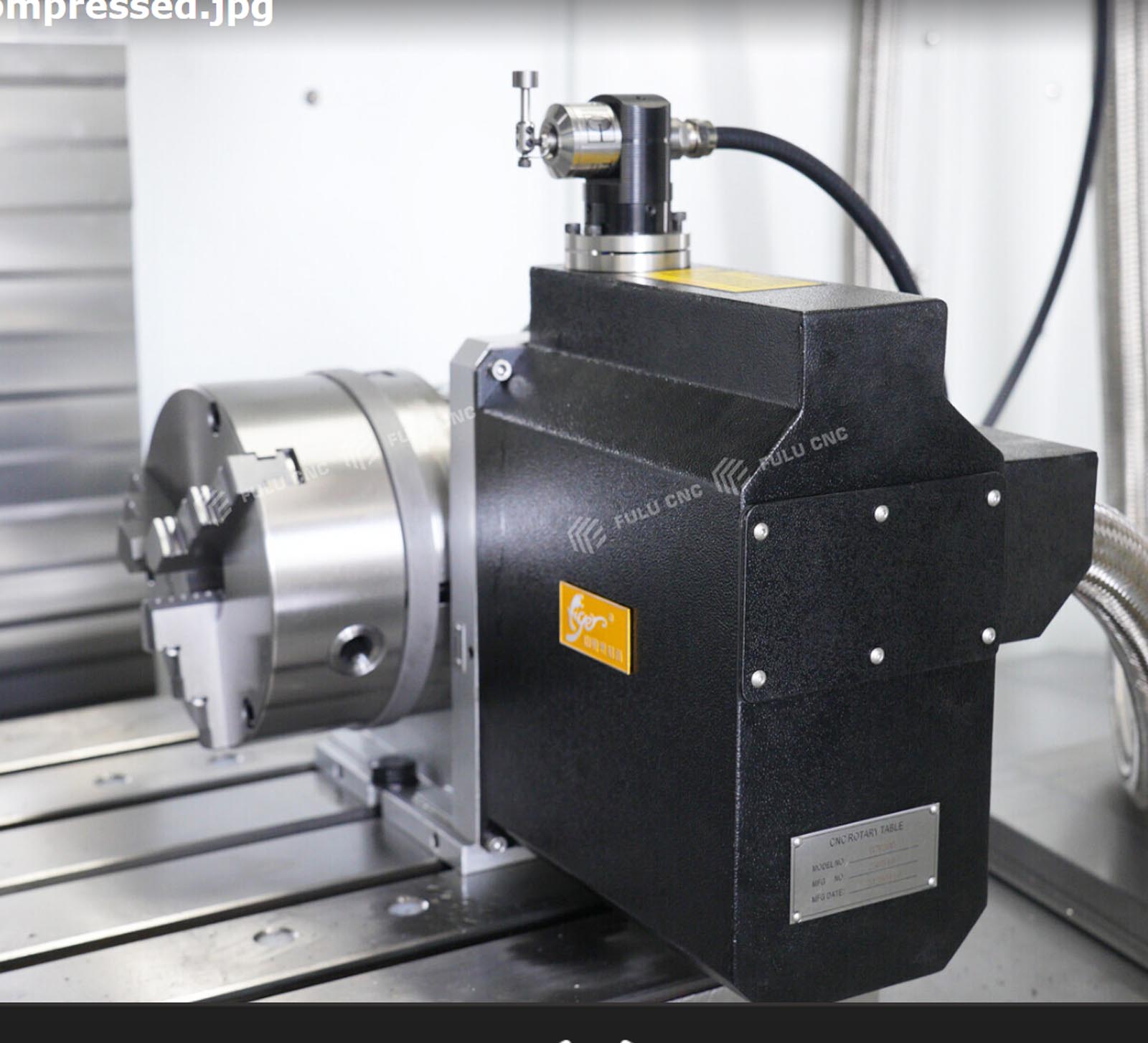

| 170/200/250/300mm fourth axis |

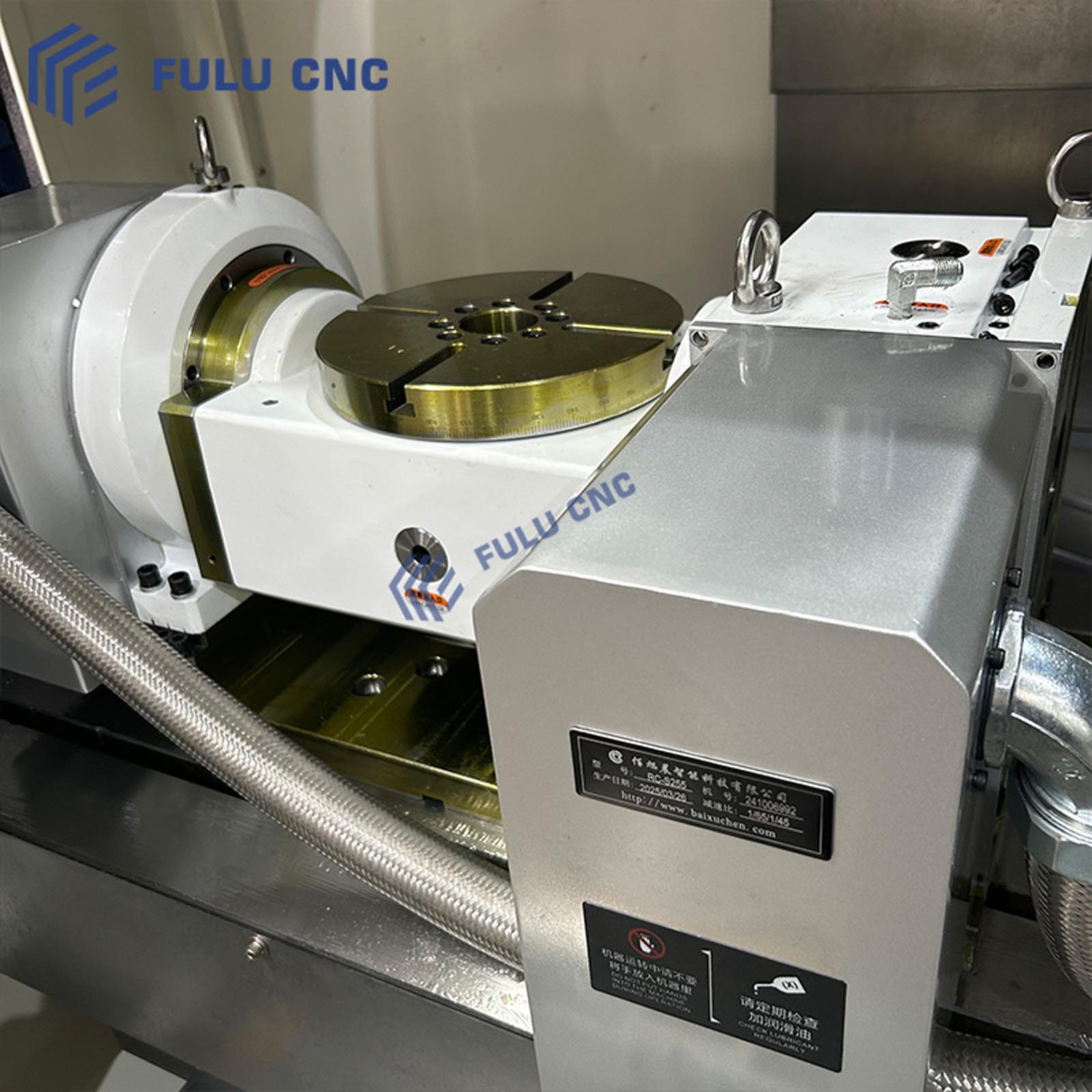

| 125/170/210/250mm fifth axis |

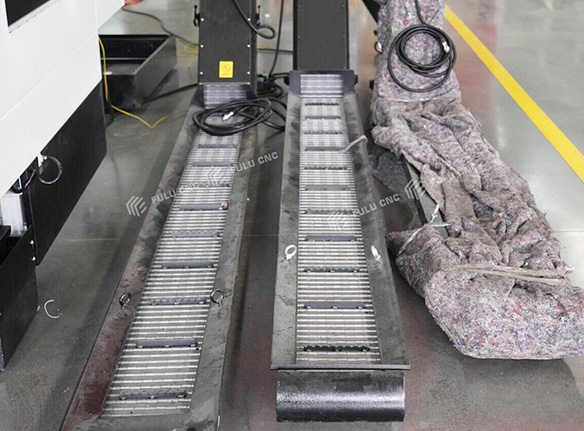

| chain-type chip conveyor |

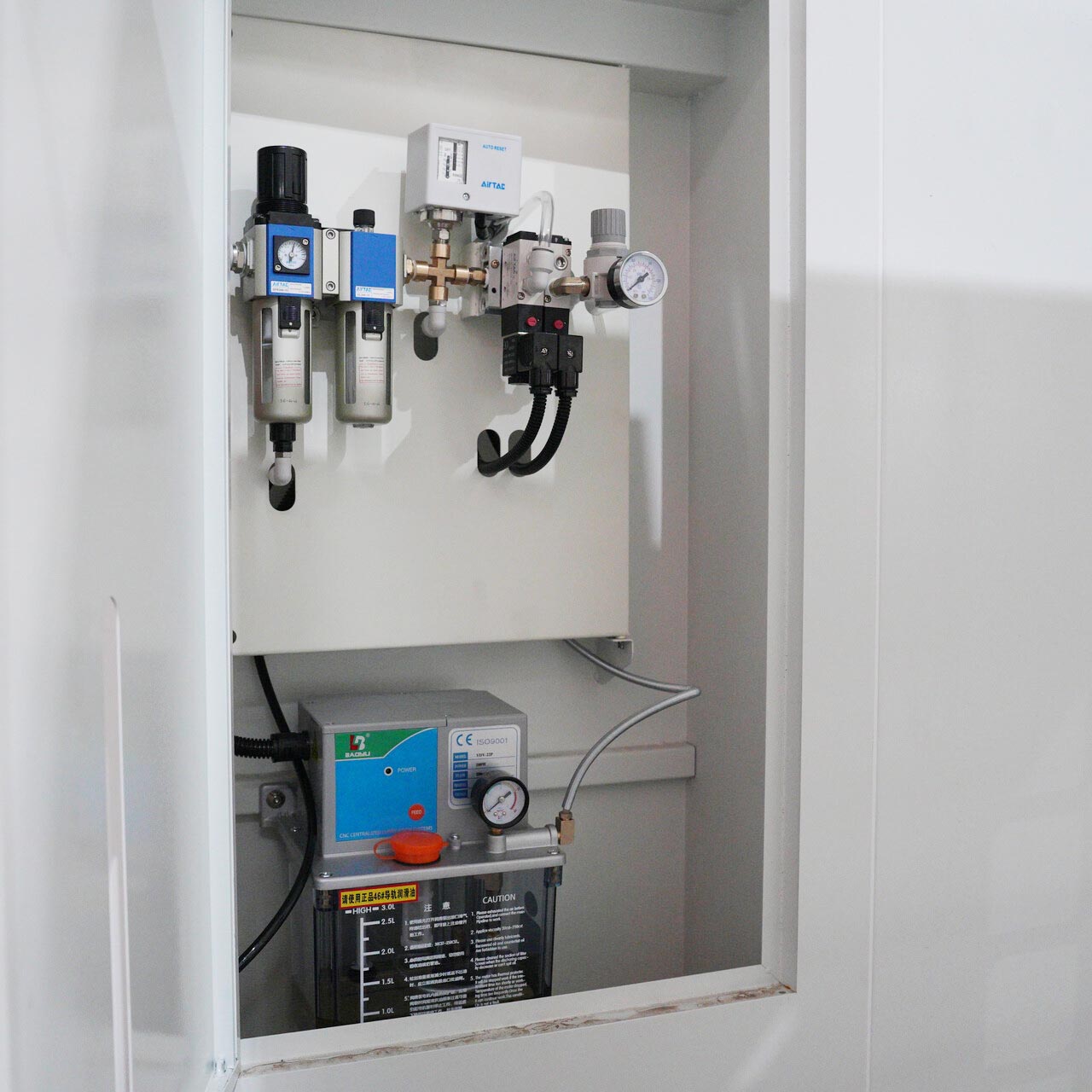

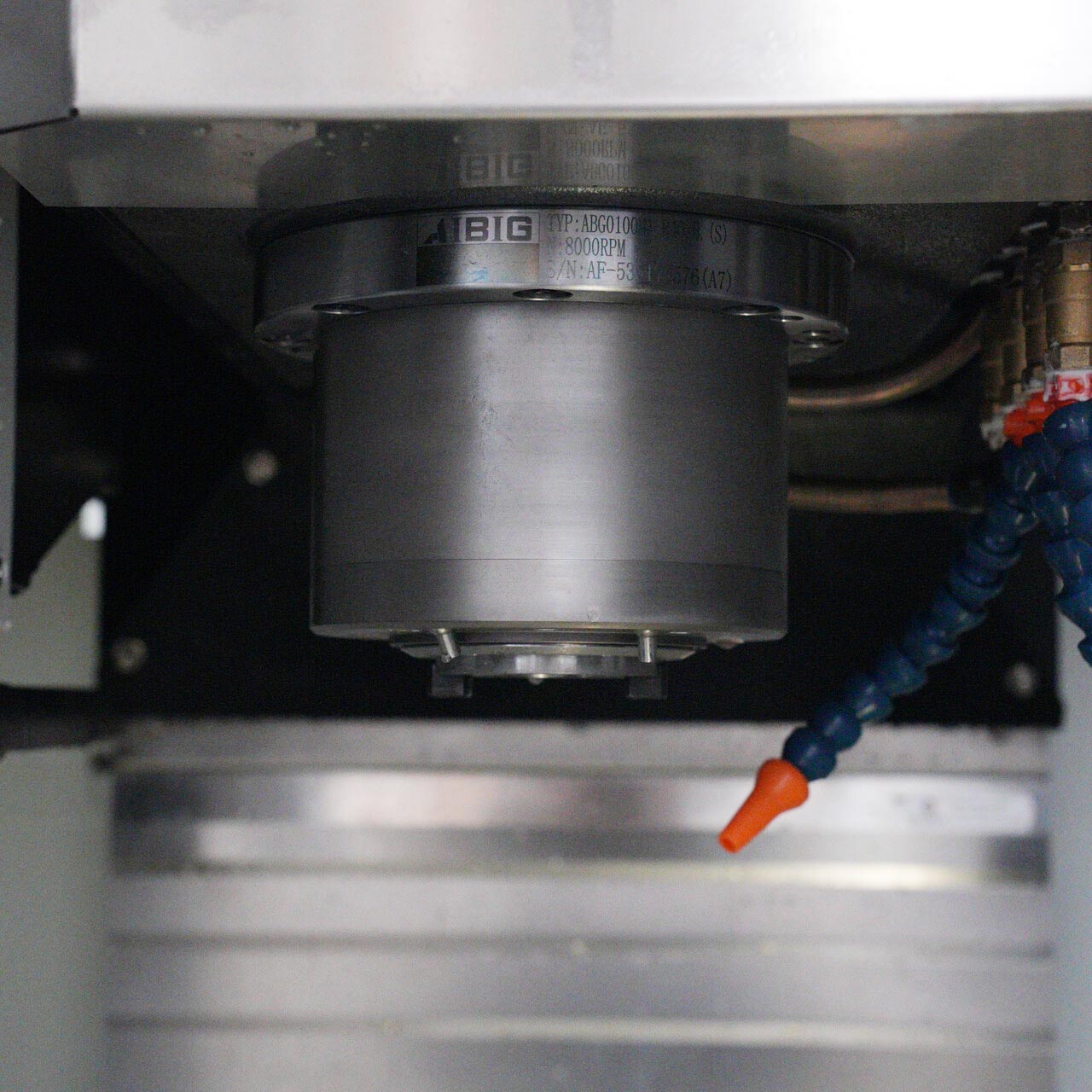

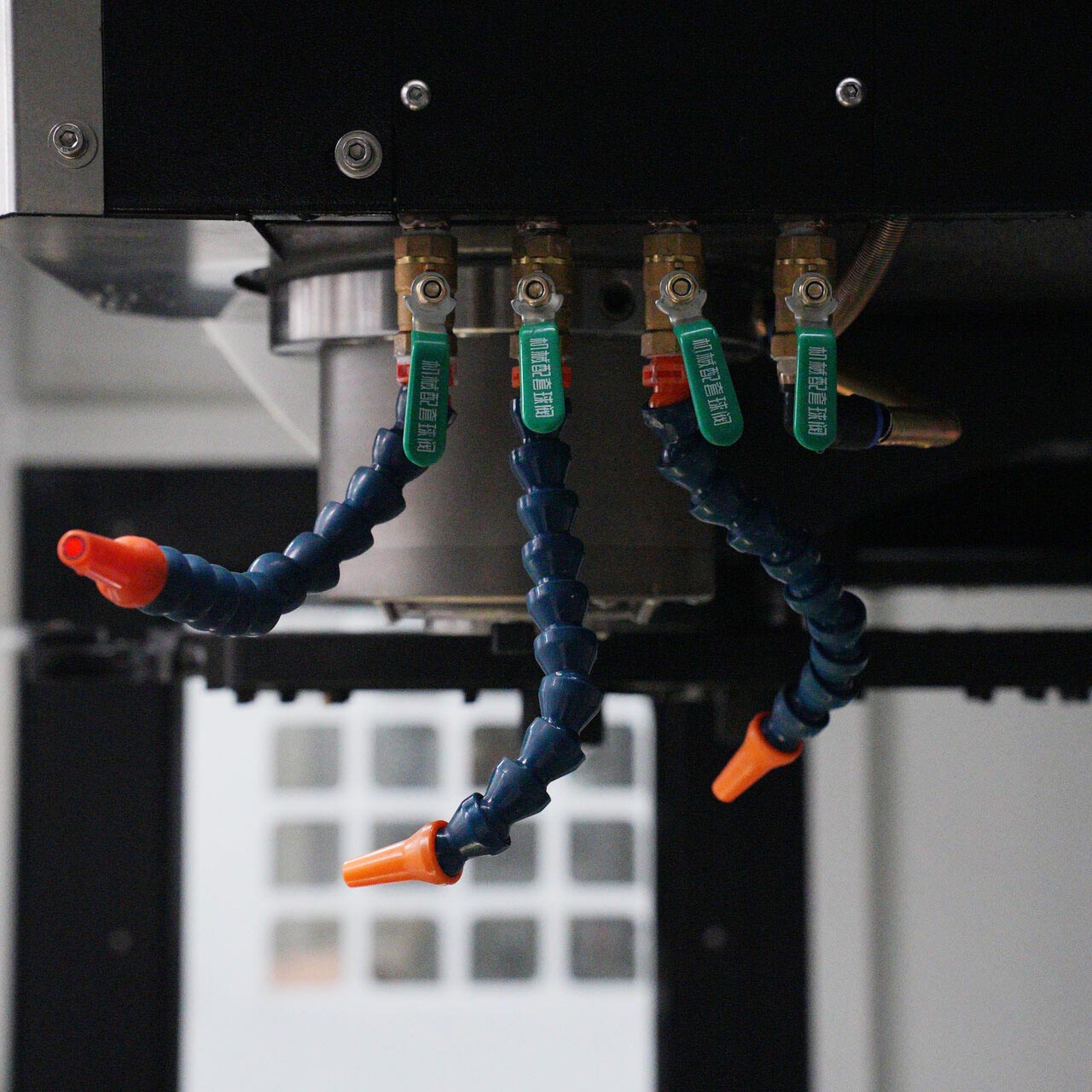

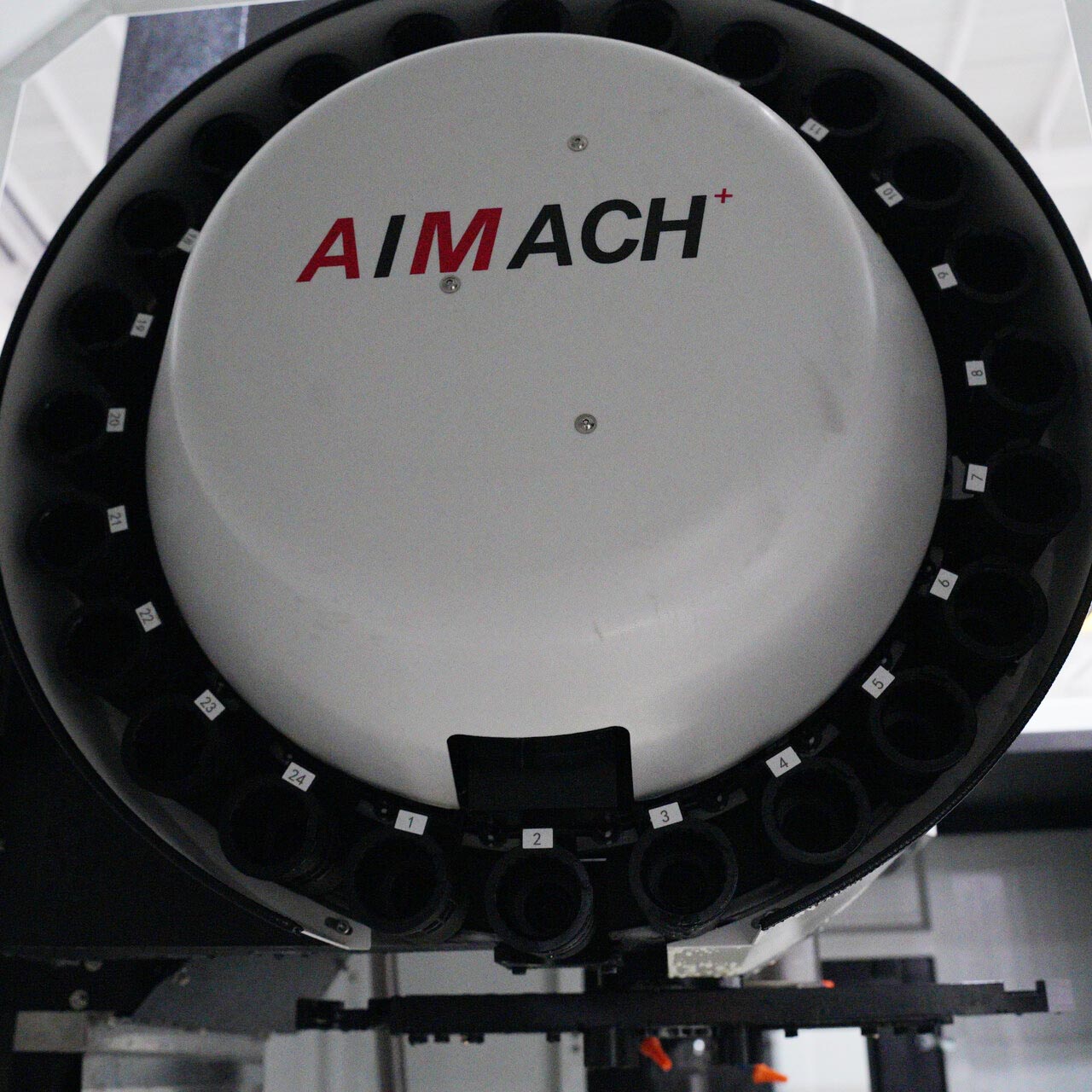

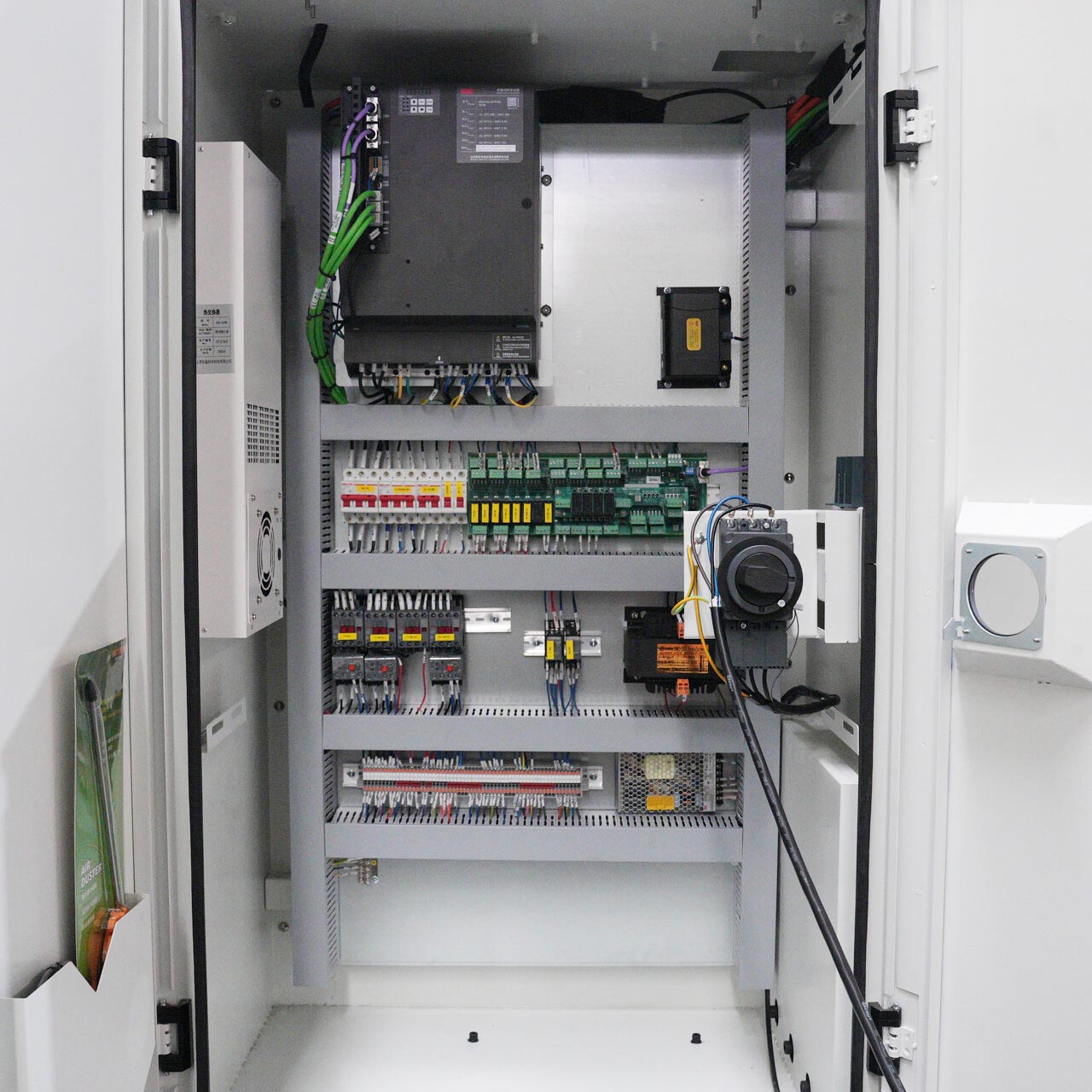

The VMC855 is currently a widely used model in the machining industryBT40 Vertical Machining Center, mainly used for milling, drilling, tapping, boring and other machining processes, suitable for industries such as mold manufacturing, automotive parts, mechanical parts, valves, and construction machinery. Spindle The maximum speed of this spindle can reach12000 RPM, belonging to the medium-high speed spindle configuration, balancing the rigid cutting of steel parts with the high-speed precision machining needs of aluminum parts and molds. Disc Tool Magazine Can automatically switch tools between different machining processes without manual intervention, achievingMulti-process machining completed in one setup。 Spindle Cooling / Cutting Fluid Pipeline Electrical Control Cabinet Automatic Lubrication Pump The machine is equipped with an intelligent centralized automatic lubrication system, which can automatically supply oil to the guide rails, ball screws, and key transmission components according to a set cycle, achieving continuous and stable lubrication, effectively reducing wear and improving machining accuracy and equipment service life.
Product Details
Learn More

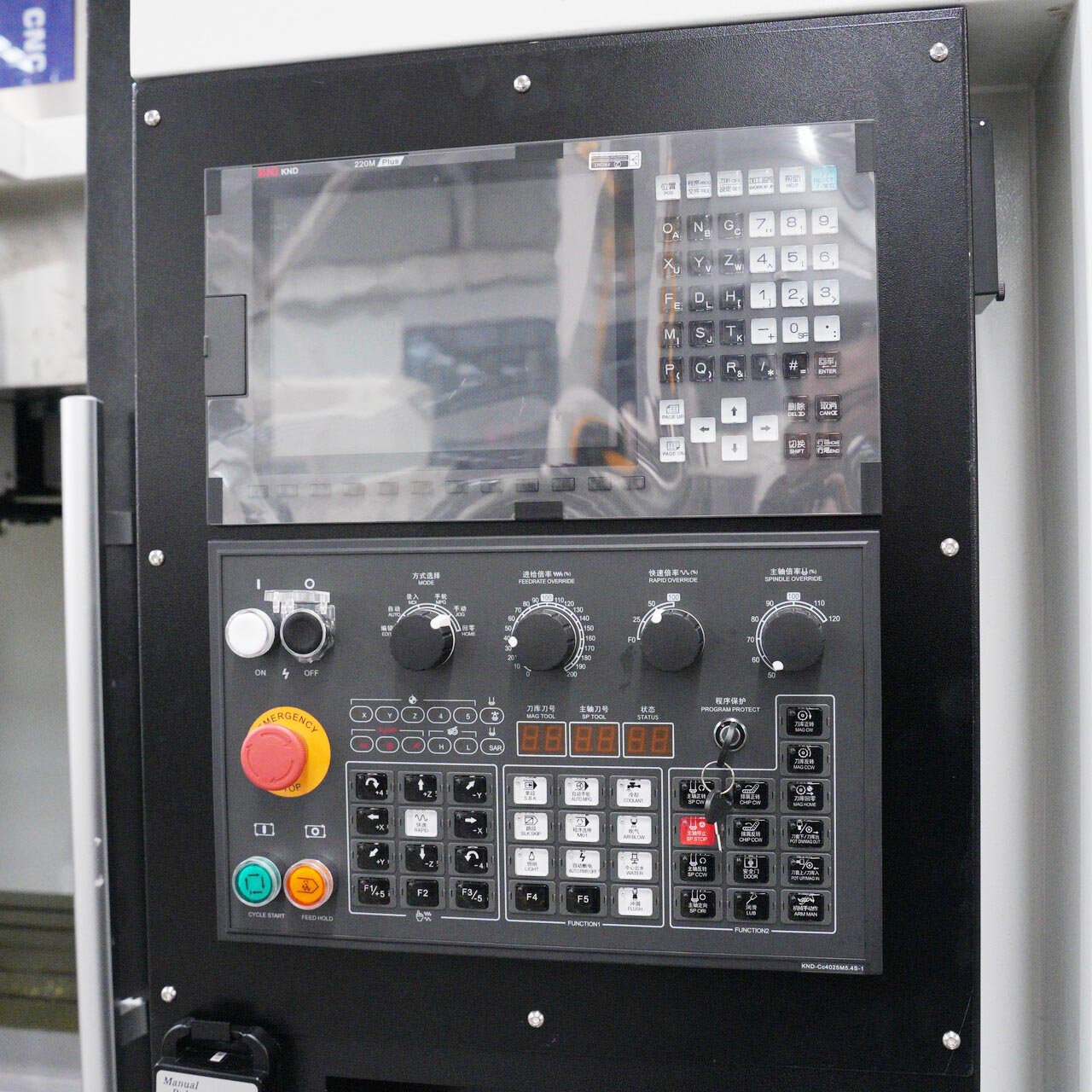

KND 220M Plus CNC System Control Panel
Widely used in vertical machining centers (VMC), drilling and tapping centers, and CNC milling machines, it is the core control unit of the machine tool, responsible for program execution, equipment control, and machining monitoring.

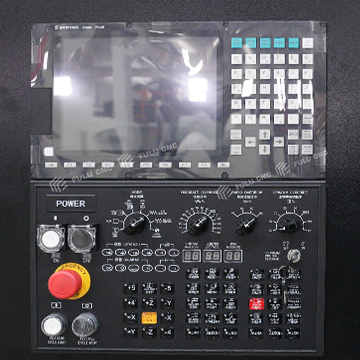

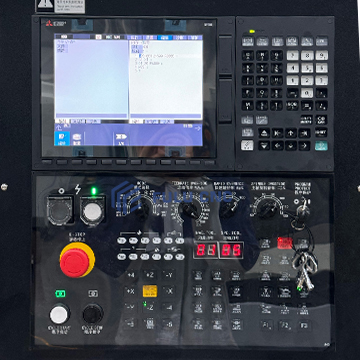

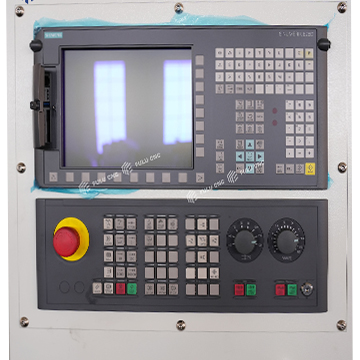

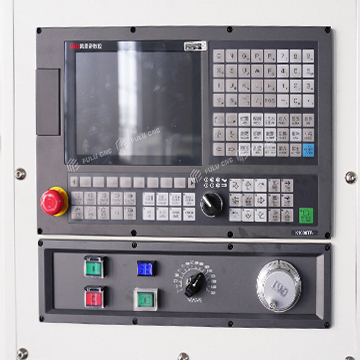

Optional Control System
