QK1313

Parameter

Project	QK1313 Parameters
Maximum Swing Diameter of Bed	Φ630 mm (up to Φ800 mm for some models)
Maximum Swing Diameter on Saddle	Φ330～340 mm
Processing Length	1000 / 1500 / 3000 mm (customizable longer)
Spindle Bore	Φ130～135 mm
Pipe Thread Processing Range	Φ30～126 mm
Bed guide width	550 mm
Spindle speed	30～800 r/min

Inquiry

Detail Inquiry

Product Features

Flat bed structure, high rigidity heavy cutting Overall horizontal bed, high-quality cast iron, strong rigidity, large bearing capacity, suitable for rough and fine turning of large diameter, long shaft, heavy workpieces, good vibration resistance, not easy to deform.
User-friendly, quick to get started Mature design, low manufacturing and maintenance costs, cheaper than the same specification slant bed, economical and practical, quick return on investment.
Wear-resistant guide rails, stable precision Rectangular hard rail / medium frequency quenching guide rail, wear-resistant, good precision retention; equipped with precision ball screw, accurate positioning, high repeat precision.

Learn More

Nulla bibendum dictum pulvinar feugiat

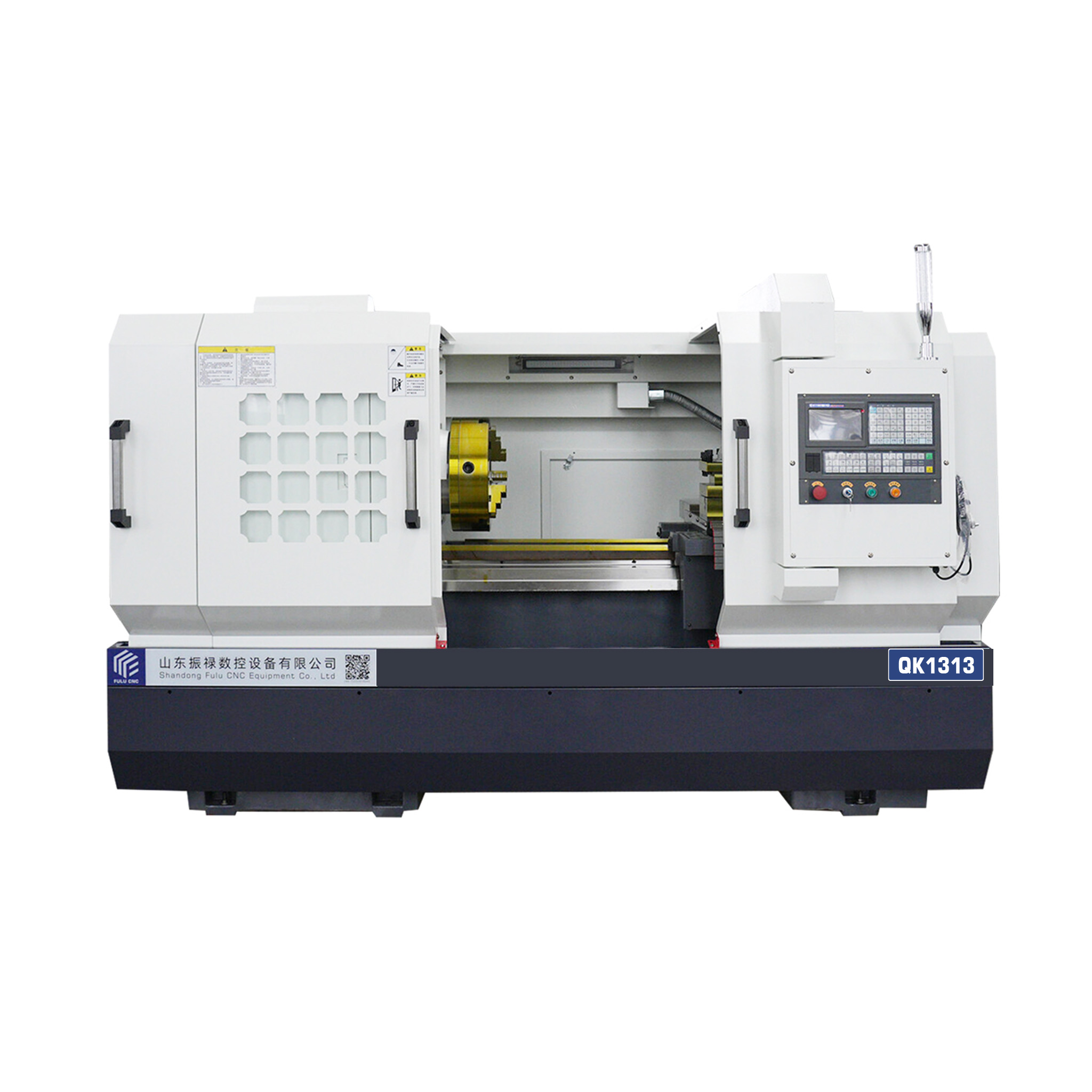

CNC flat lathe features a horizontal flat bed structure, two axes (X/Z) linkage, used for automatic processing of external circles, internal holes, conical surfaces, arcs, end faces, grooves, threads, and other processes for shaft and disc parts. With strong overall rigidity, simple structure, and high cost performance, it is the main model for medium and small batch, heavy cutting, long shaft processing, widely used in automotive parts, motors, bearings, agricultural machinery, and general machinery industries.

Technical Parameters
Standard Configuration
Select Configuration

Project	QK1313 Parameters
Maximum Turning Diameter of Bed	Φ630 mm (some models can reach Φ800 mm)
Maximum Turning Diameter on the Slide	Φ330～340 mm
Processing Length	1000 / 1500 / 3000 mm (custom longer lengths available)
Spindle Through Hole	Φ130～135 mm
Pipe Thread Processing Range	Φ30～126 mm
Width of Bed Guide Rail	550 mm
Spindle Speed	30～800 r/min
Spindle Speed Change Method	Two-speed or three-speed stepless speed change
Main Motor Power	11 kW
X-axis Travel	320～420 mm
Z-axis Travel	850～2850 mm
X-axis Rapid Traverse Speed	4000 mm/min
Z-axis Rapid Traverse Speed	4000～6000 mm/min
Tool Holder	Four-station Electric Tool Holder / CNC Turret
Tool Holder Size	32×32 mm
Chuck	Φ380～Φ400 Three-jaw Chuck
Tailstock Sleeve Diameter	Φ100 mm
Tailstock Travel	250 mm
Tailstock Taper Hole	MT5
Positioning Accuracy	±0.02 mm
Repeat Positioning Accuracy	±0.01 mm
Total Weight	4～6 tons (weight varies with length)

Project	Standard Configuration
Numerical Control System	GSK GSK980TC3 / GSK980TDC
Chuck	Front and rear double three-jaw manual chuck
Tool Holder	Four-station electric tool holder (NC Turret)
Tailstock	Manual tailstock
Lubrication System	Automatic centralized lubrication
Cooling System	Cooling pump and coolant device
Protection	Semi-enclosed protective cover
Lighting System	Work light
Power Supply	380V/50Hz three-phase electricity
Guide Rail	High-frequency hardened rail
Spindle	Large diameter spindle (130~135mm)
Rear support	Standard support frame (some manufacturers' configurations)

Accessory Name

6/8/10 Inch Hydraulic Chuck

6/8 Station Electric Tool Holder

Hydraulic Tailstock

GSK/Fanuc/Siemens Control System

Product Details

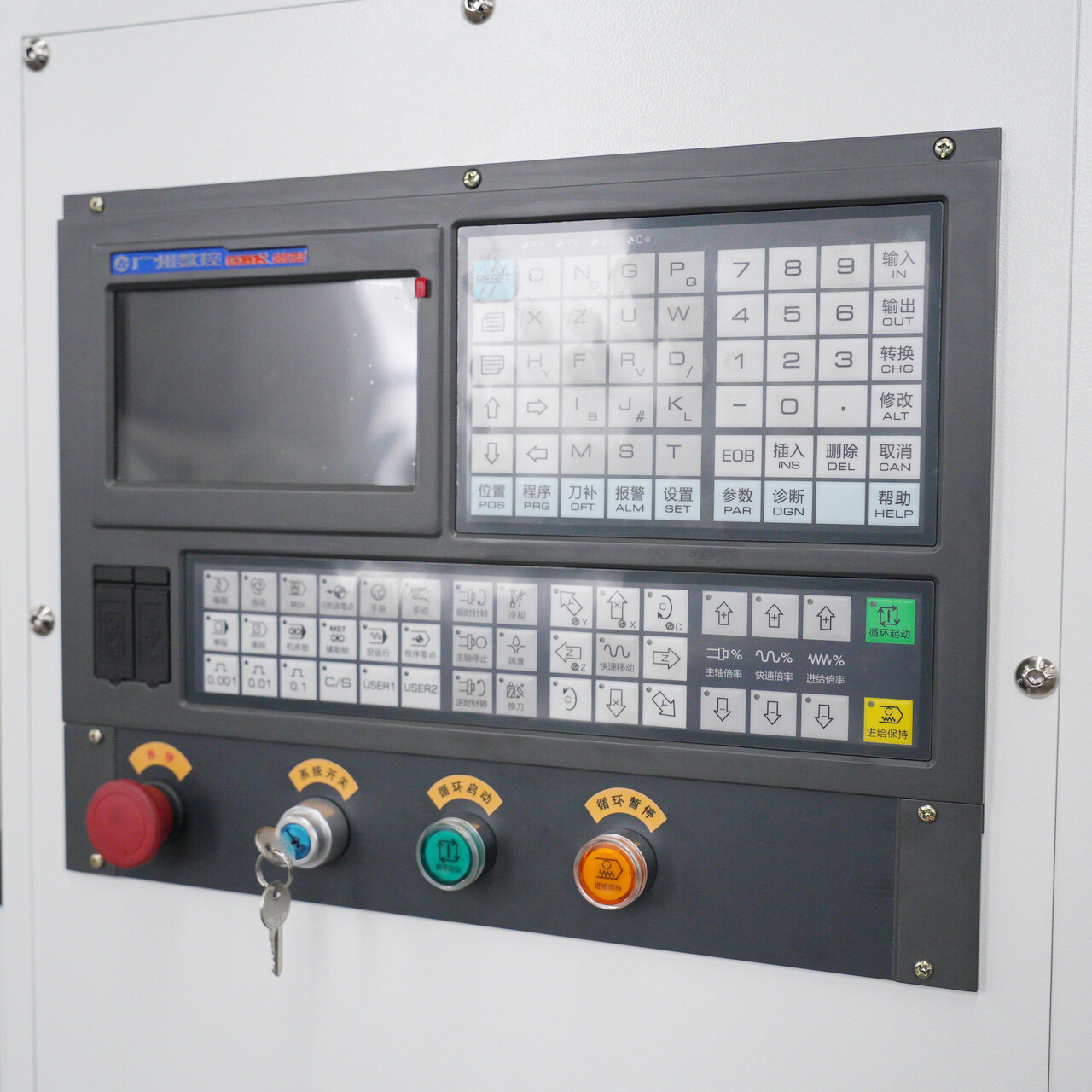

GSK Control System

The GSK CNC system adopts a modular hardware architecture, including a main control unit, servo drivers, and input/output modules, which can be flexibly configured to meet the needs of different machine tools.
----

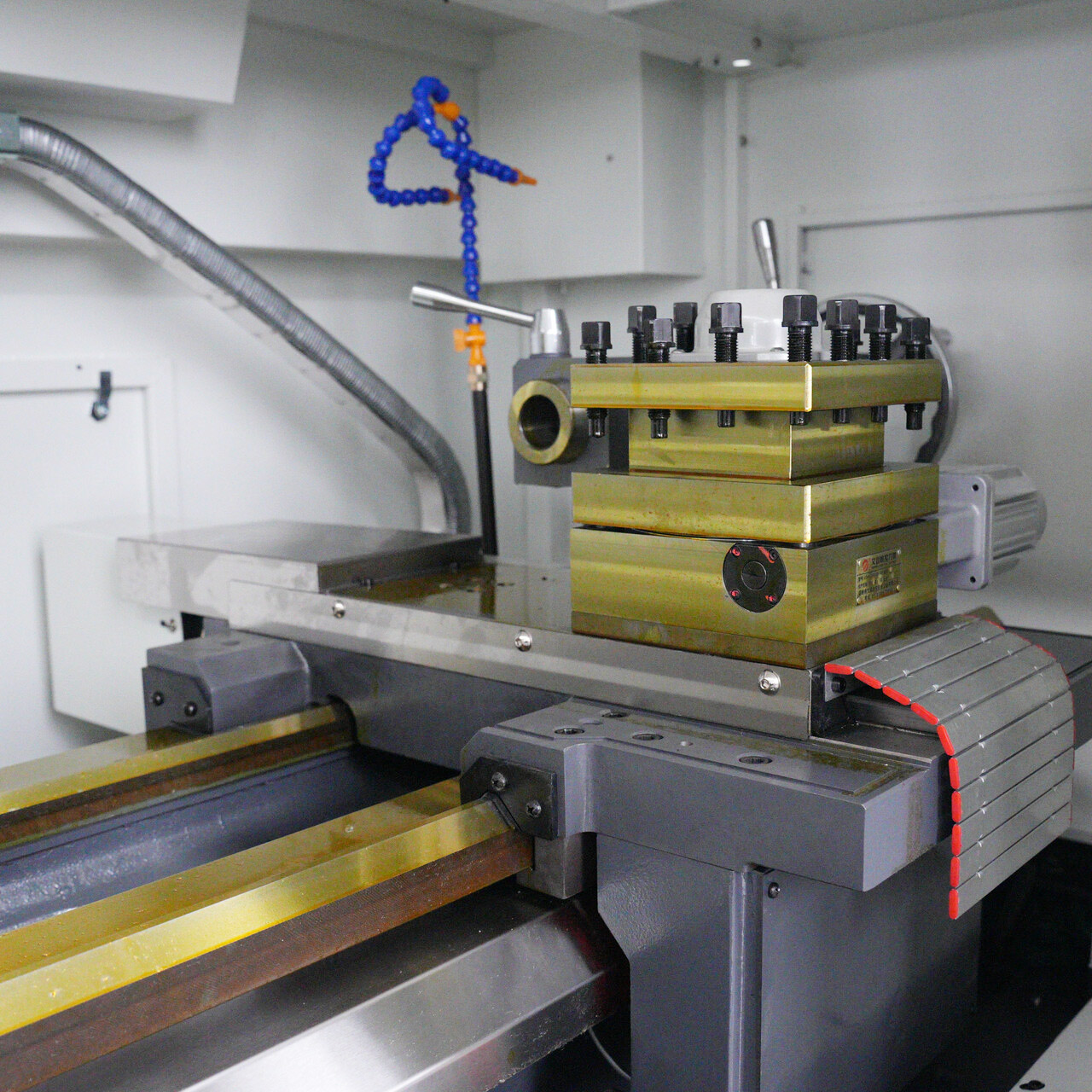

4 Station Electric Tool Holder

The 4 station electric tool holder is the most commonly used automatic tool change component for economical flat-bed CNC lathes, with 4 tool installation stations evenly distributed on the tool body, allowing for simultaneous installation of 4 cutting tools, and automatic tool change through CNC program T code without manual operation of the handle.
----

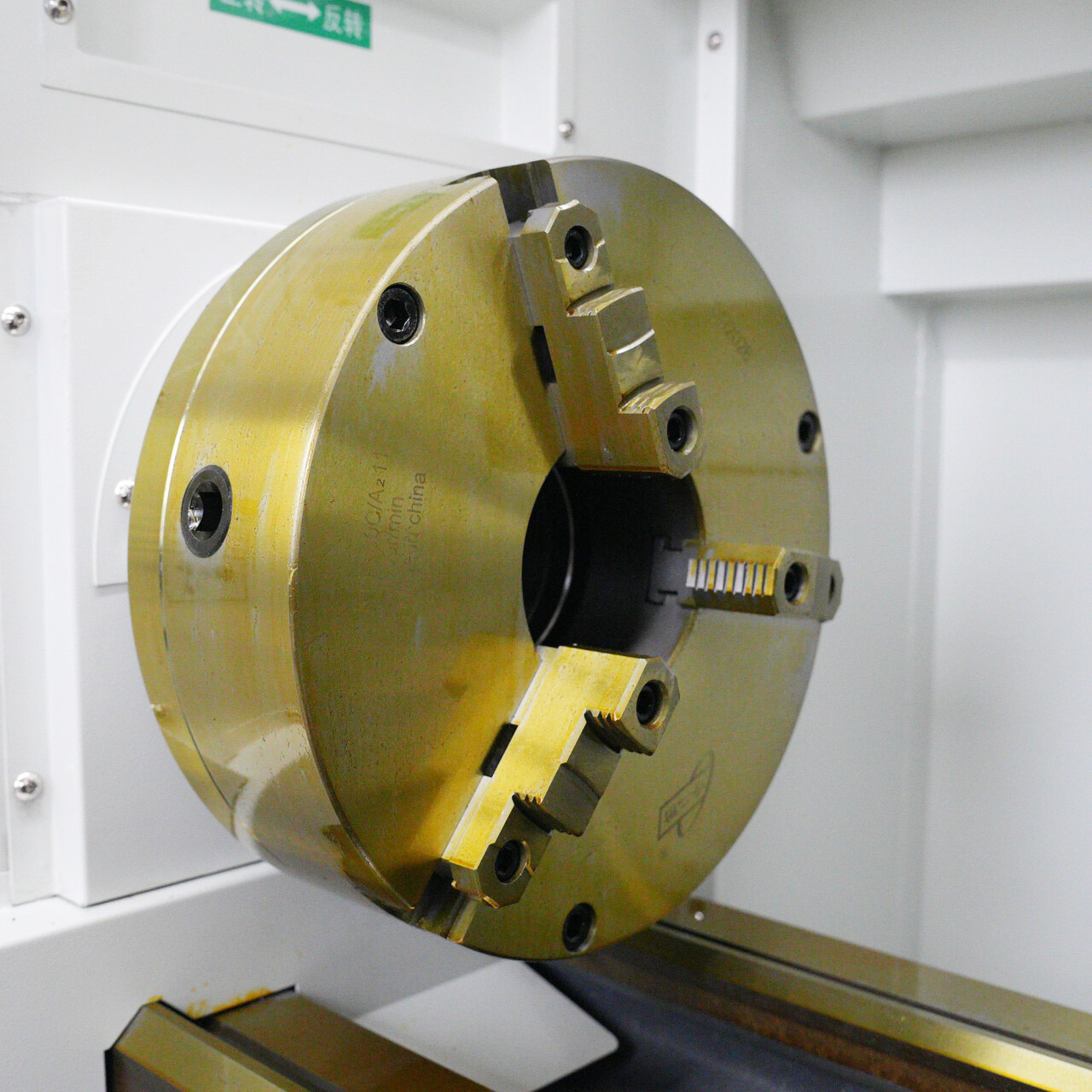

Three-Jaw Self-Centering Chuck

The three-jaw self-centering chuck is the most commonly used workpiece centering and clamping fixture for CNC lathes and ordinary lathes, installed at the front end of the lathe spindle, relying on an internal cam structure to drive the three jaws to extend and retract radially in sync, automatically centering and clamping the workpiece, capable of clamping round rods and disc-like workpieces, while ensuring the workpiece's rotation center coincides with the spindle center.
----

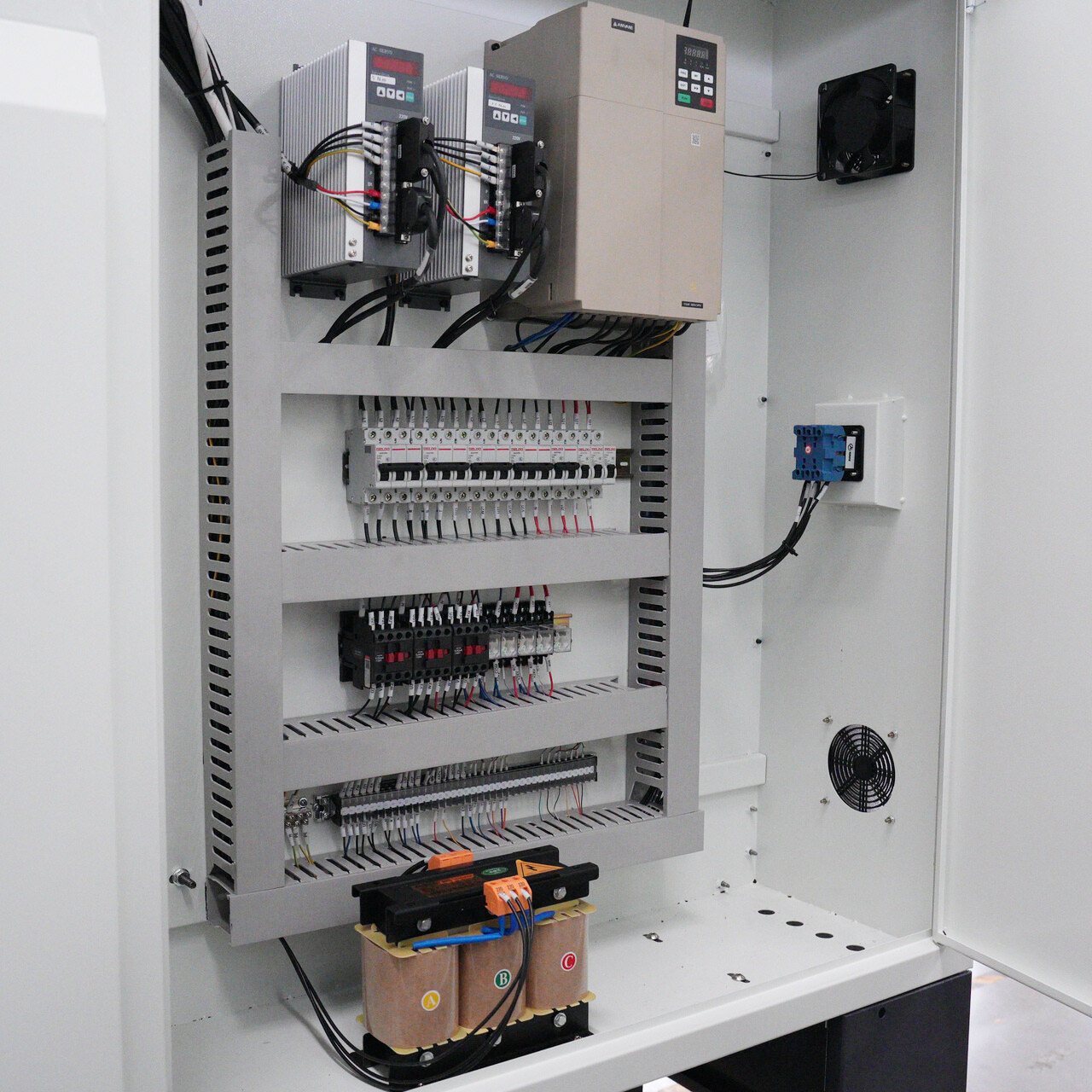

Electrical Control Cabinet

The electrical control cabinet is the 'nerve center' of the CNC machine tool. It converts CNC program instructions into precise motion actions, safely distributes power, and protects various electrical components of the machine tool.
----

Select Configuration

Six Inch Hydraulic Chuck

8 inch hydraulic chuck

10 inch hydraulic chuck

Eight Station Electric Tool Holder

Six-station Electric Turret

Siemens Control System

GSK Control System

Fanuc Control System

------

Machinable Parts

Shaft Parts

Features: External spline teeth, trapezoidal threads, large aspect ratio

Disc / Flange Parts

Features: Wheel groove, center hole, end face disc, center hole, evenly distributed bolt holes, stop groove

Sleeve / Cylinder Parts

Features: Long cylinder deep hole, inner wall high finish, sealing groove

Small Precision Standard Parts

Includes: Bolts, nuts, locating pins, rivets, small instrument parts

Hydraulic / Pneumatic Pipe Fittings

Pipe thread (G/Rc), 60° cone surface, hex position

Composite Irregular Parts (with powered turret)

Features: Turning outer circle + side milling flat / radial groove / small hole

------
