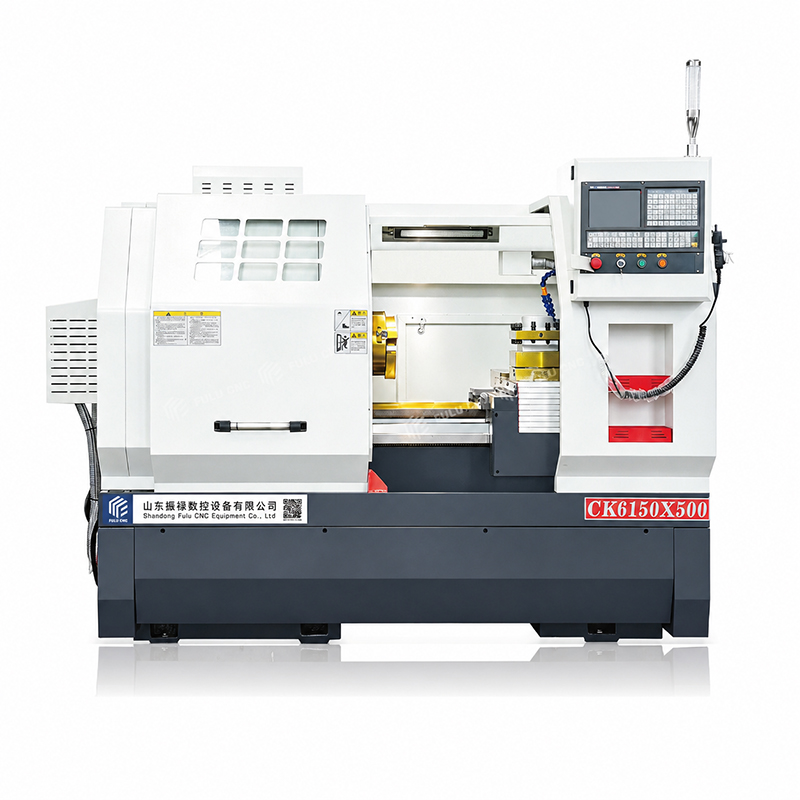

CK6150-500

CK6150X500

Parameter

Maximum swing diameter on bed slide	mm	Φ400
Maximum swing diameter on slide		Φ200
Maximum machining length	mm	750/1000/1500
Maximum machining diameter	mm	Φ400
Maximum bar diameter	mm	Φ200
Chuck		200 Three-jaw Chuck

Inquiry

Detail Inquiry

Product Features

Flat bed structure, high rigidity heavy cutting Overall horizontal bed, high-quality cast iron, strong rigidity, large bearing capacity, suitable for rough and fine turning of large diameter, long shaft, heavy workpieces, good vibration resistance, not easy to deform.
User-friendly, quick to get started Mature design, low manufacturing and maintenance costs, cheaper than the same specification slant bed, economical and practical, quick return on investment.
Wear-resistant guide rails, stable precision Rectangular hard rail / medium frequency quenching guide rail, wear-resistant, good precision retention; equipped with precision ball screw, accurate positioning, high repeat precision.

Learn More

Nulla bibendum dictum pulvinar feugiat

CNC flat lathe features a horizontal flat bed structure, two axes (X/Z) linkage, used for automatic processing of external circles, internal holes, conical surfaces, arcs, end faces, grooves, threads, and other processes for shaft and disc parts. With strong overall rigidity, simple structure, and high cost performance, it is the main model for medium and small batch, heavy cutting, long shaft processing, widely used in automotive parts, motors, bearings, agricultural machinery, and general machinery industries.

Technical Parameters
Standard Configuration
Select Configuration

Project	Unit	Specification
Maximum turning diameter on the bed	mm	500
Maximum turning diameter on the saddle slide	mm	270
Guide rail span	mm	400
Effective processing length	mm	850/1350/1850
Maximum travel X	mm	280
Maximum travel Z	mm	1000/1500/2000
Spindle speed range	r/min	45-1600/1200 (three-speed)
Spindle through hole diameter	mm	Φ82/Φ105
Spindle taper hole	Metric	Metric 90 (1:20)
Spindle end model		A2-8
Height from spindle center to bed surface	mm	255
Maximum travel of tailstock sleeve	mm	150
Diameter of tailstock sleeve	mm	75
Taper of tailstock sleeve taper hole		Morse 5
Rapid movement speed (X/Z axis)	m/min	≥6/8
Turning thread range (metric thread)	mm	0.2～30
Repeat positioning accuracy (X/Z axis)	mm	0.007～0.01
Processing accuracy		IT6～IT7
Processing roughness		Ra1.6
Maximum load for shaft parts	kg	500
Maximum load for disc parts	kg	300
Dimensions: Length × Width × Height	mm	2640×1600×1800
Machine weight (approximately)	kg	2500/2700/3200

Name	Model, Specification	Quantity	Place of Origin
Control System	GSK980TB3i Bus System	1	Guangzhou
Ball Screw	X-axis: FFZD2505	1	Taiwan Shenghe/Nanjing Process
Ball Screw	Z-axis: FFZD4010	1	Huaxia
Screw Bearing	X:760204TN/P5DB	1 Pair	Harbin
Screw Bearing	Z:760307TN/P5DB/7206AC/6206RS	1 Set	Harbin
Inverter	7.5KW	1	Domestic
Spindle Bearing	234424BM1/SP5（120×180×72）	1	HRB
	NN3024K/W33/P5.2（120×180×46）	1	HRB
	NN3020K/W33/P5（105×160×26）	1	HRB
	6019（105×160×26）	1	HRB
Tool Holder	LDB4-6150/110	1	Hongda
Manual Chuck	Φ250 Three-Jaw	1	Domestic
Lubrication System	TZ-150/4C	1	Domestic
Cooling Pump	AB-25	1	Domestic

Accessory Name

6/8/10 Inch Hydraulic Chuck

6/8 Station Electric Tool Holder

Hydraulic Tailstock

GSK/Fanuc/Siemens Control System

Learn More

Product Details

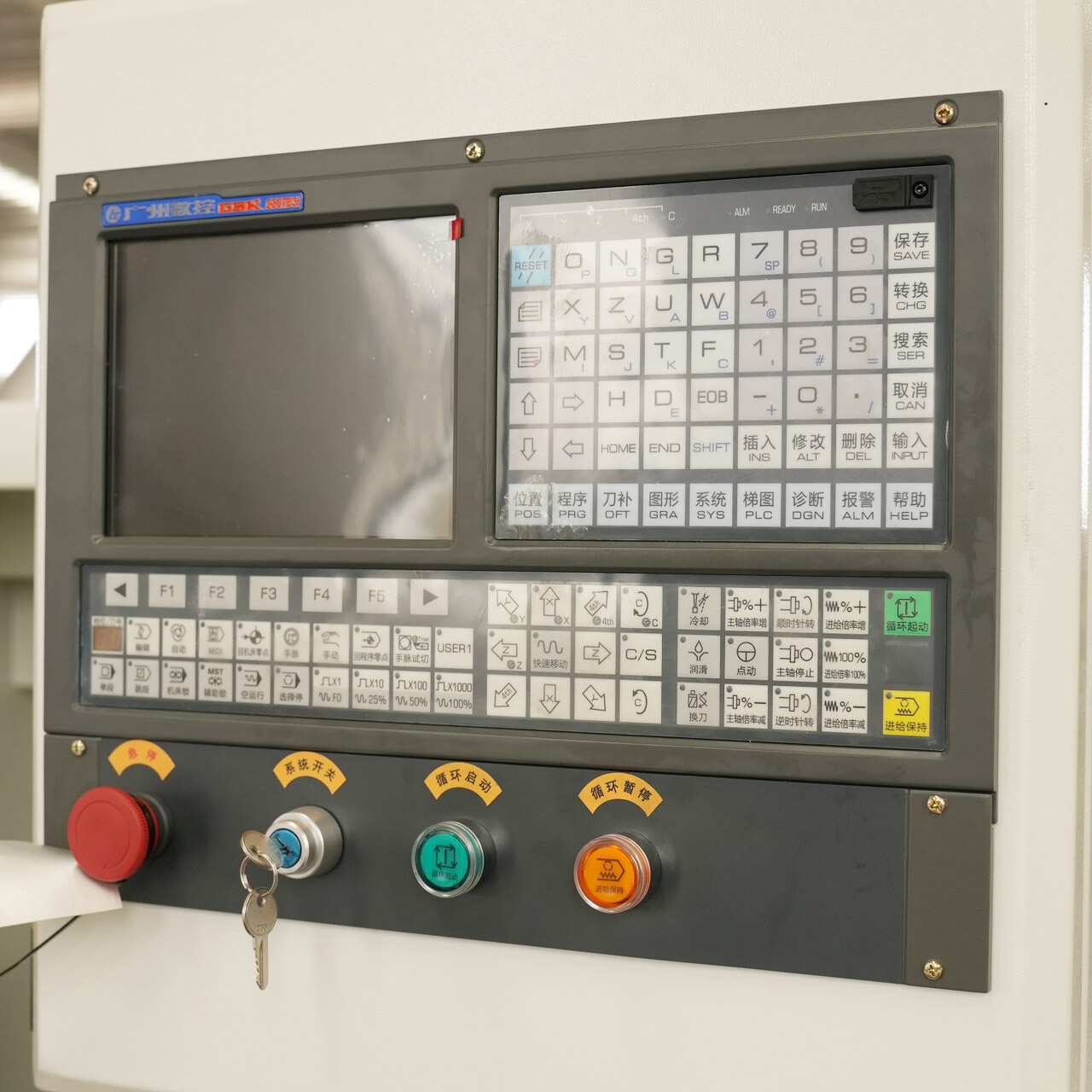

GSK Control System

The GSK CNC system adopts a modular hardware architecture, including a main control unit, servo drives, and input/output modules, which can be flexibly configured to meet the needs of different machine tools.
----

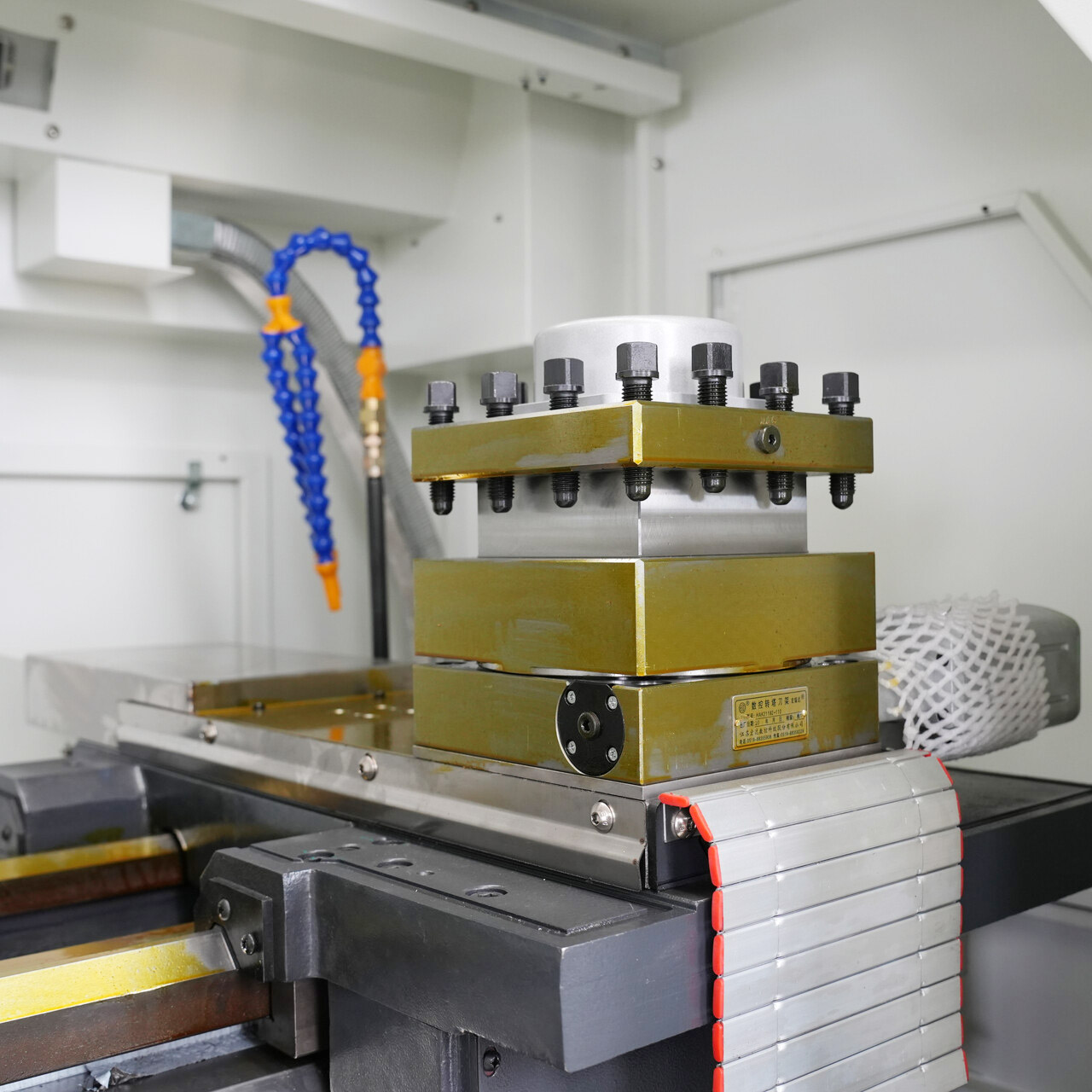

4 Station Electric Tool Holder

The 4 station electric tool holder is the most commonly used automatic tool change component for economical flat-bed CNC lathes, with 4 tool mounting stations evenly distributed on the tool body, allowing for 4 turning tools to be installed simultaneously. The tool change is automatically completed through the CNC program T code without manual operation of the handle.
----

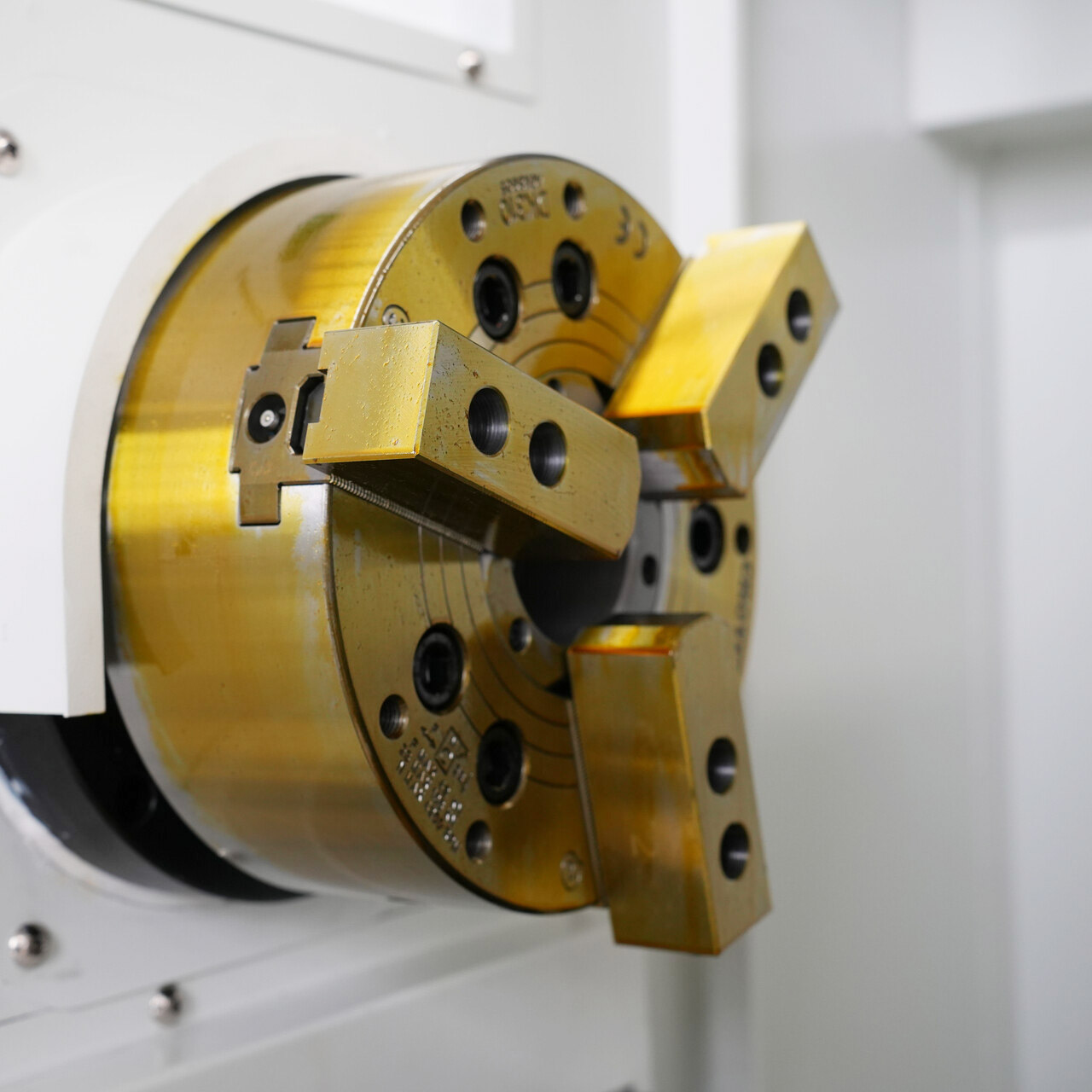

Three-Jaw Hydraulic Chuck

The three-jaw hydraulic chuck is an automatic centering clamping device specifically designed for CNC lathes, installed at the front end of the lathe spindle. It relies on the hydraulic cylinder at the rear end of the spindle to provide power, driving the internal structure to synchronize the extension and retraction of the three jaws, automatically completing the centering, clamping, and loosening of workpieces without the need for traditional manual wrench operation.
----

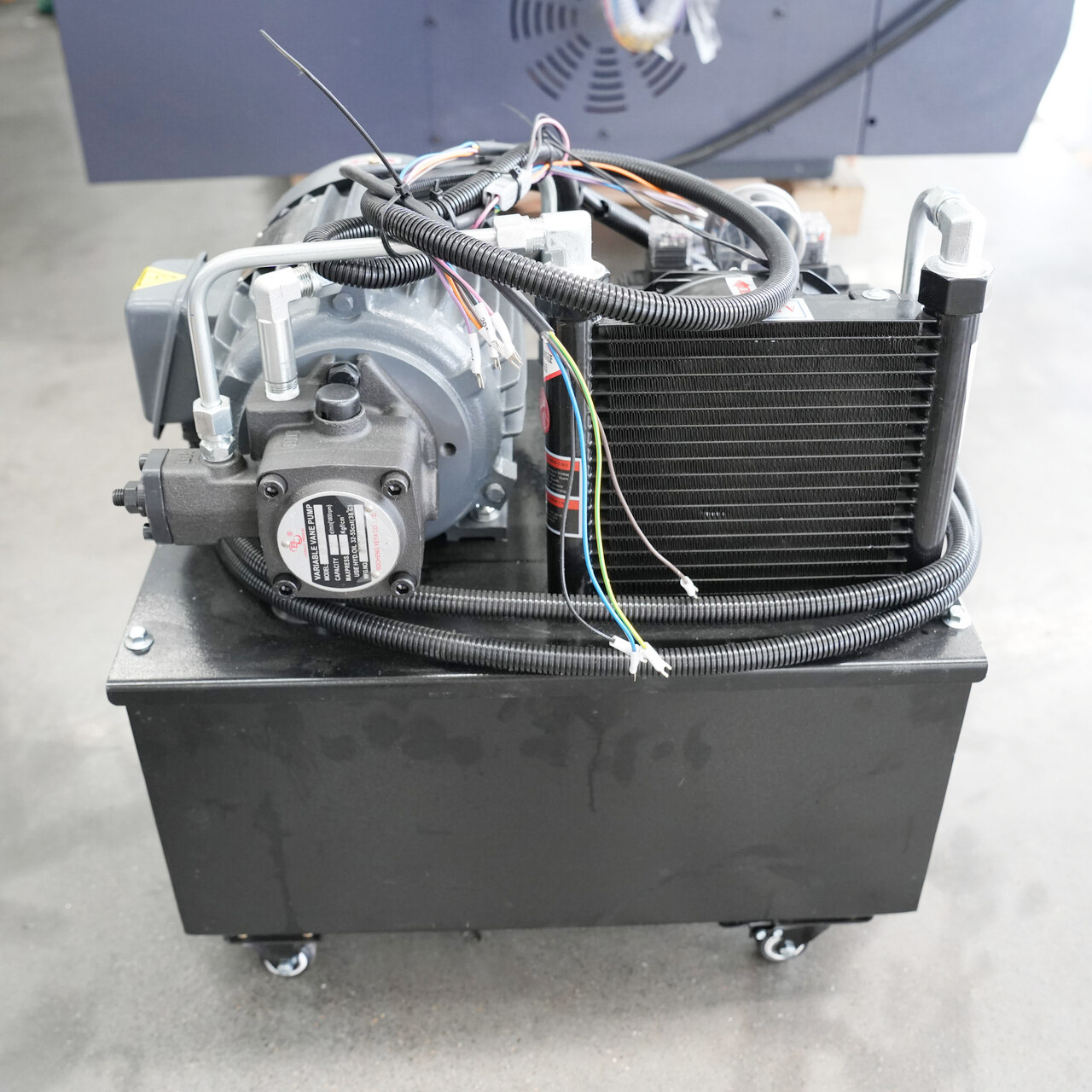

Hydraulic Station

This device is the oil supply unit that provides pressure power for the previously introduced three-jaw hydraulic chuck, hydraulic tailstock, and hydraulic turret, used to stabilize the output hydraulic oil pressure, achieving automatic clamping/releasing of workpieces and hydraulic component actions.
----

Select Configuration

Six Inch Hydraulic Chuck

8 inch hydraulic chuck

10 inch hydraulic chuck

Eight Station Electric Tool Holder

Six-station Electric Turret

Siemens Control System

GSK Control System

Fanuc Control System

------

Machinable Parts

Shaft Parts

Features: External spline teeth, trapezoidal threads, large aspect ratio

Disc / Flange Parts

Features: Wheel groove, center hole, end face disc, center hole, evenly distributed bolt holes, stop groove

Sleeve / Cylinder Parts

Features: Long cylinder deep hole, inner wall high finish, sealing groove

Small Precision Standard Parts

Includes: Bolts, nuts, locating pins, rivets, small instrument parts

Hydraulic / Pneumatic Pipe Fittings

Pipe thread (G/Rc), 60° cone surface, hex position

Composite Irregular Parts (with powered turret)

Features: Turning outer circle + side milling flat / radial groove / small hole

------
