Product Details

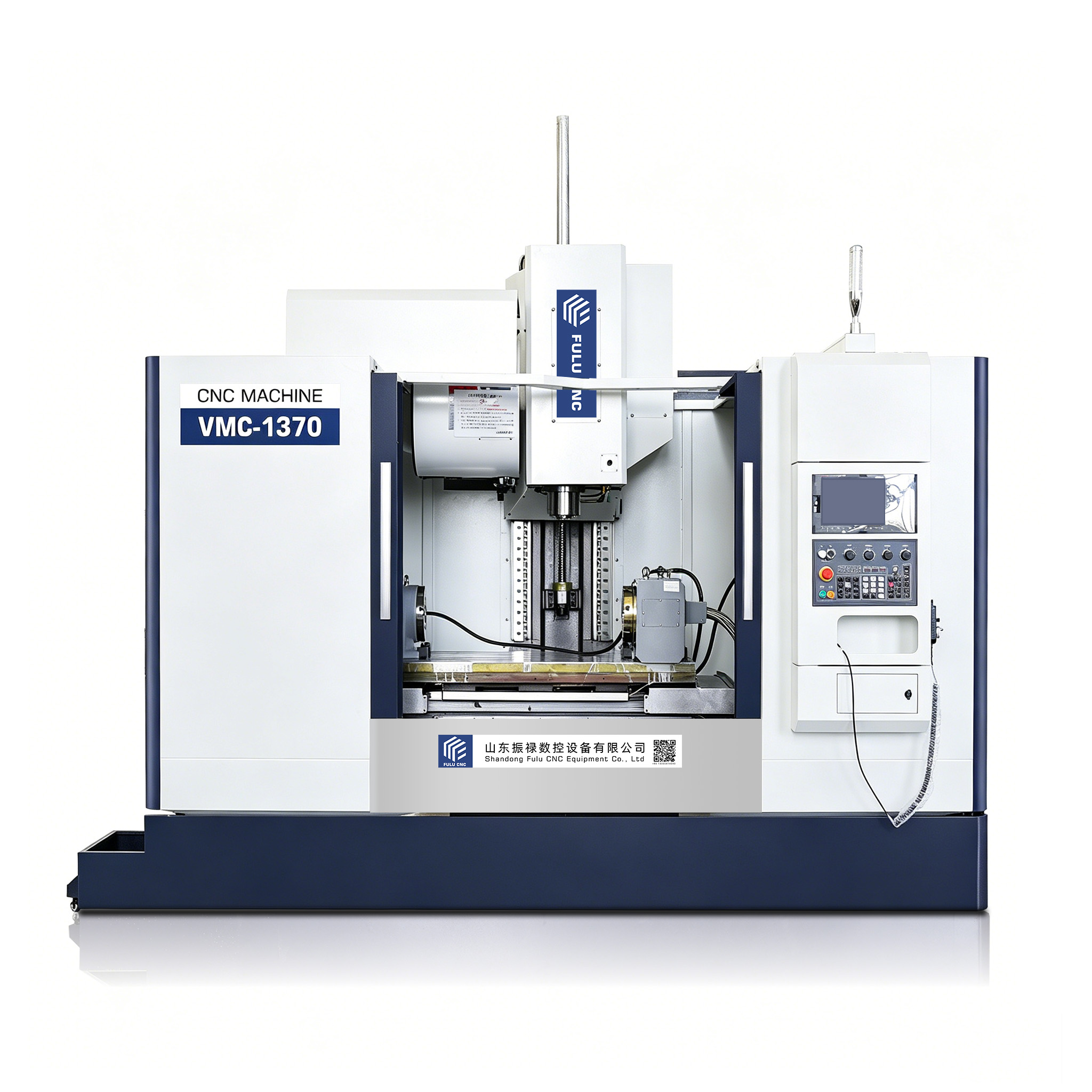

1. X, Y, Z axis travel: 1300x700x700mm

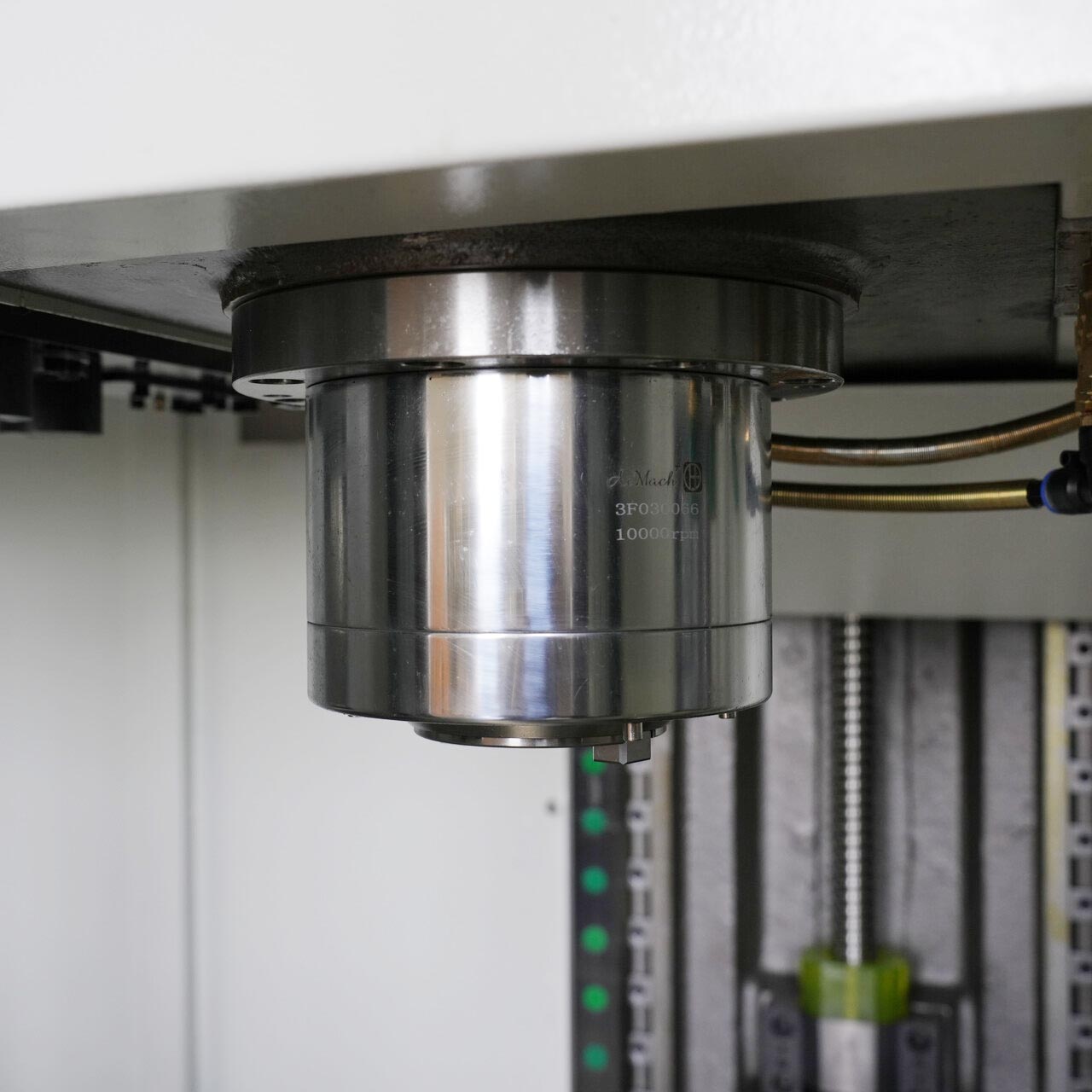

2. The spindle rotation method is belt drive, with a maximum speed of 8000 RPM (ring spray).

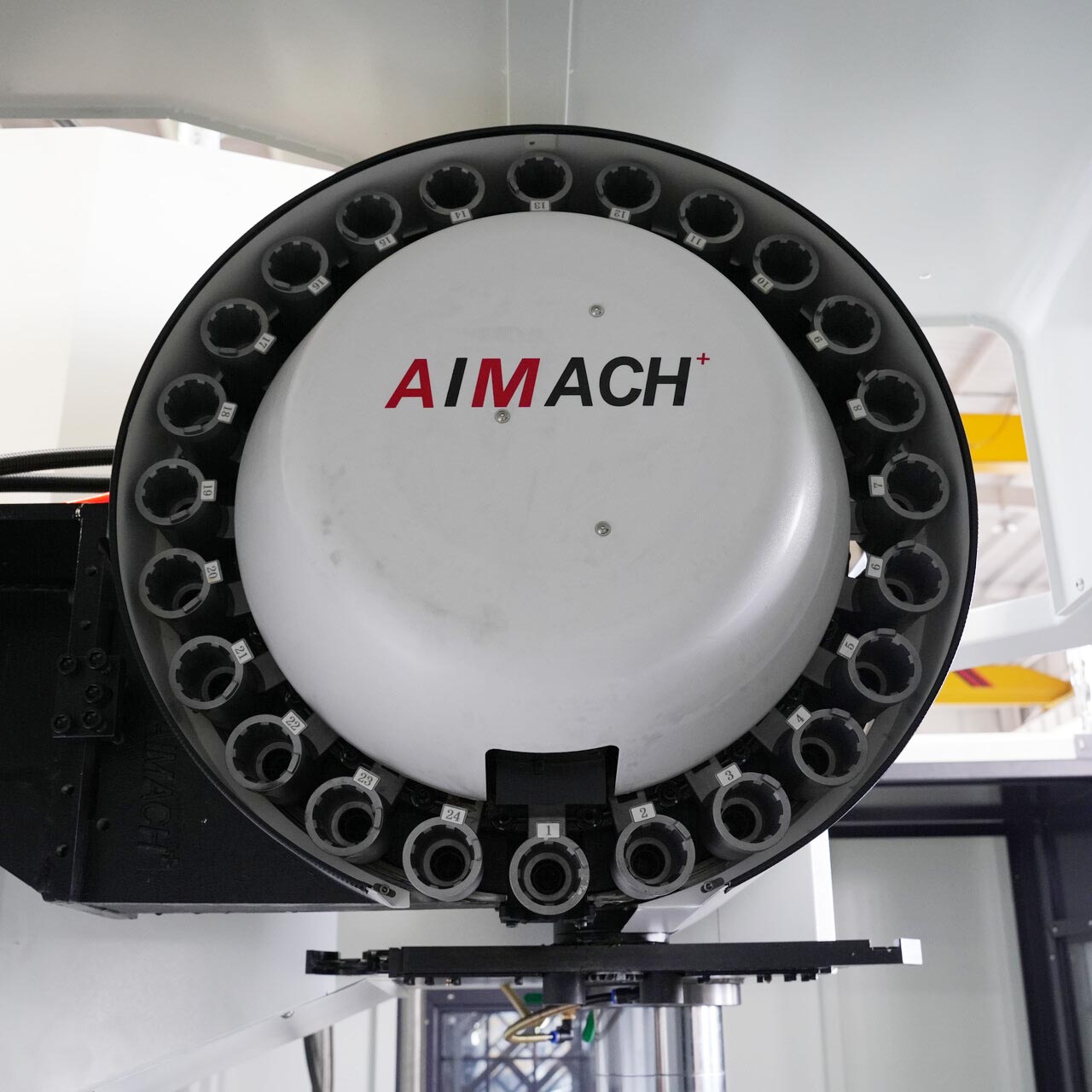

3. The standard configuration of the tool magazine is a disc-type magazine with 24 tools, meeting customer needs.

4. The head assembly is a heavy-duty box structure, reinforced with internal ribs for high rigidity.

5. The spindle tool change method uses a pneumatic mechanism, ensuring even force on the spindle during tool changes, extending bearing life.

6. The electrical box adopts an internal isolation design, separating the heat source of the controller, using a heat exchanger for cooling at the front to prevent external dust from entering the electrical box; the rear side uses a fan for cooling the heat plate.

7. The three axes use high-precision quenched screws, combined with precision nut preloading and rear-end pre-tensioning devices, ensuring that the machine's backlash and thermal deformation remain low for a long time.

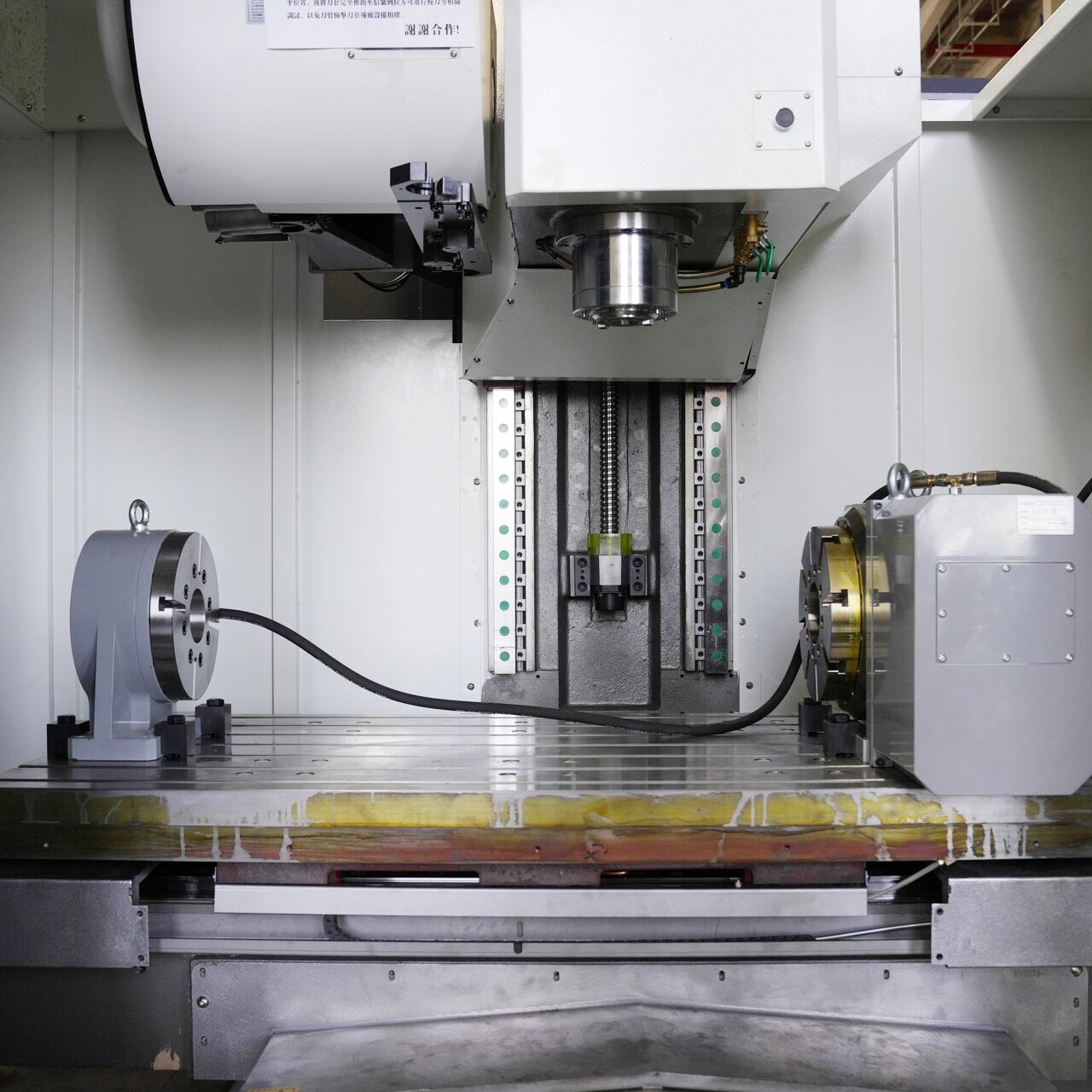

8. X, Y, Z axes (X, Z axes use 45 guide rails for heavy load, Y axis 45 uses four guide rails) X/Z axis 6 extended flange slider design, using roller linear guides, with high rigidity, low noise, capable of rapid displacement and achieving optimal cycle accuracy.

9. All finished products undergo laser positioning correction and circular testing to ensure optimal positioning accuracy and servo characteristics, and the machine is subjected to strict inspection measures before shipment to ensure long-term stability of all precision aspects.

Mass production.
