VMC1275

Parameter

Project	Parameters
Model	VMC1275
X-axis Travel	1200 mm
Y-axis Travel	750 mm
Z-axis Travel	600 mm
Table Size	1300 × 700 mm
T-slot	7 × 18 × 100 mm
Maximum worktable load	800~1000 kg
Distance from spindle end face to worktable	120~720 mm
Distance from spindle center to column guide rail	775 mm

Inquiry

Detail Inquiry

Technical Parameters
Standard Configuration
Select Configuration

Project	Parameters
Model	VMC1275
X-axis travel	1200 mm
Y-axis travel	750 mm
Z-axis travel	600 mm
Table size	1300 × 700 mm
T-slot	7 × 18 × 100 mm
Maximum load on table	800~1000 kg
Distance from spindle end face to table	120~720 mm
Distance from spindle center to column guide rail	775 mm
Spindle taper	BT40 (optional BT50)
Spindle speed	8000 rpm (optional 10000/12000rpm)
Spindle motor power	11/15 kW
Rapid traverse of three axes	36/36/36 m/min (some manufacturers 24/24/20 m/min)
Cutting feed speed	1~10000 mm/min
Tool magazine capacity	24-piece disc tool magazine
Maximum tool diameter	Φ78 mm
Maximum tool length	300 mm
Positioning accuracy	±0.005 mm
Repeat positioning accuracy	±0.003 mm
Machine weight	6500~9000 kg
Overall dimensions	Approximately 3200~3900 × 2300~2900 × 2600~3000 mm

Standard Configuration

Taiwan High-Speed Spindle

Taiwan Roller Linear Guide (X/Y/Z Axes)

Taiwan Precision Ball Screw

24-Position Disc Tool Magazine

Automatic Lubrication System

Fully Enclosed Protection

Pneumatic System

Cooling System

LED Work Light

Three-Color Warning Light

Handheld Electronic Handwheel (Optional)

10000/12000rpm spindle speed

30kg/50kg/70kg central water outlet

Renishaw tool setter

170/200/250/300mm fourth axis

125/170/210/250mm fifth axis

chain-type chip conveyor

Learn More

Product Details

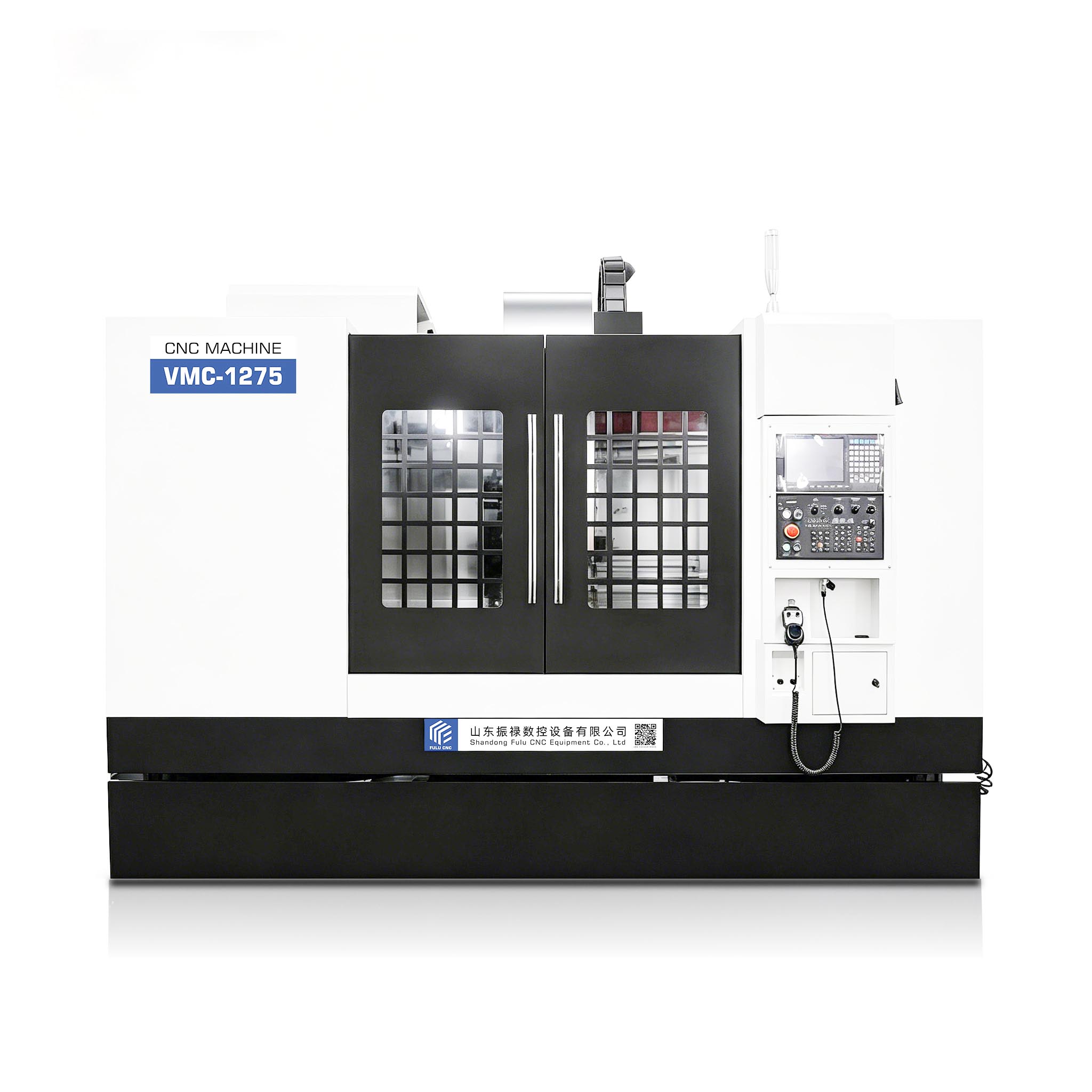

The VMC1275 vertical machining center is a high-rigidity, high-precision, and high-efficiency CNC machining equipment suitable for industries such as mold manufacturing,

automotive parts, engineering machinery, aerospace, and general machinery. The machine tool is made of high-strength resin sand castings, treated for durability,

equipped with a high-speed spindle, precision ball screws, and linear guides, capable of performing milling, drilling, tapping, boring, and various

machining processes.

Learn More

GSK Control System

This GSK system is the mainstream configuration for domestic economical machining centers, featuring stable performance and comprehensive functions, supporting G-code programming, tool compensation, macro programs, and other commonly used functions of machining centers.

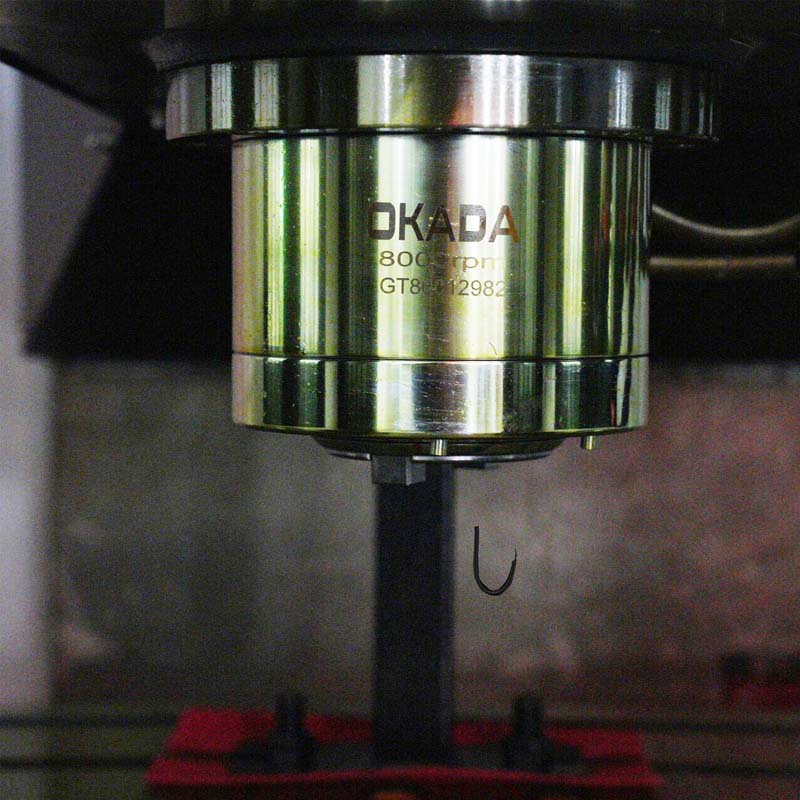

Spindle

The maximum speed of this spindle can reach12000 RPM, which belongs to the medium-high speed spindle configuration, balancing the rigid cutting of steel parts and the high-speed precision machining needs of aluminum parts and molds.

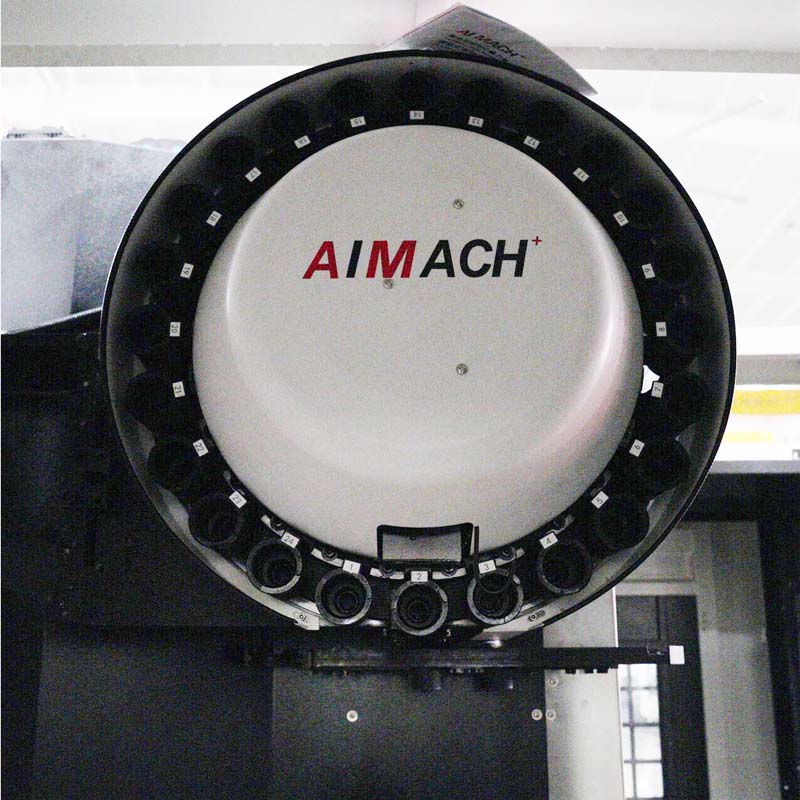

Disc Tool Magazine

Automatically switches tools between different machining processes without manual intervention, achievingmultiple processes completed in one setup。

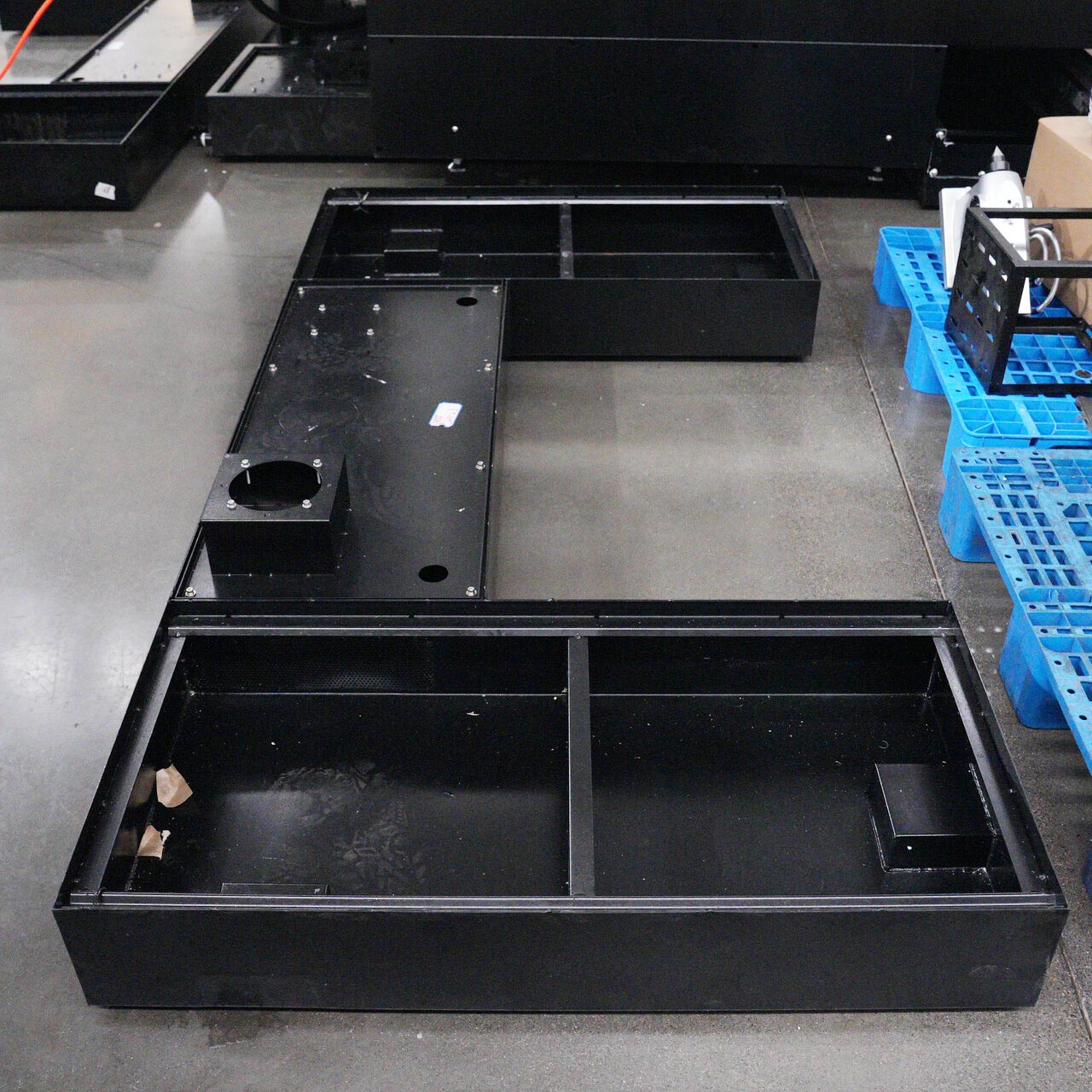

Cutting Fluid Cooling Tank

Stores circulating cutting fluid (coolant / cutting oil)
Multi-stage sedimentation filtration
Integrated base function

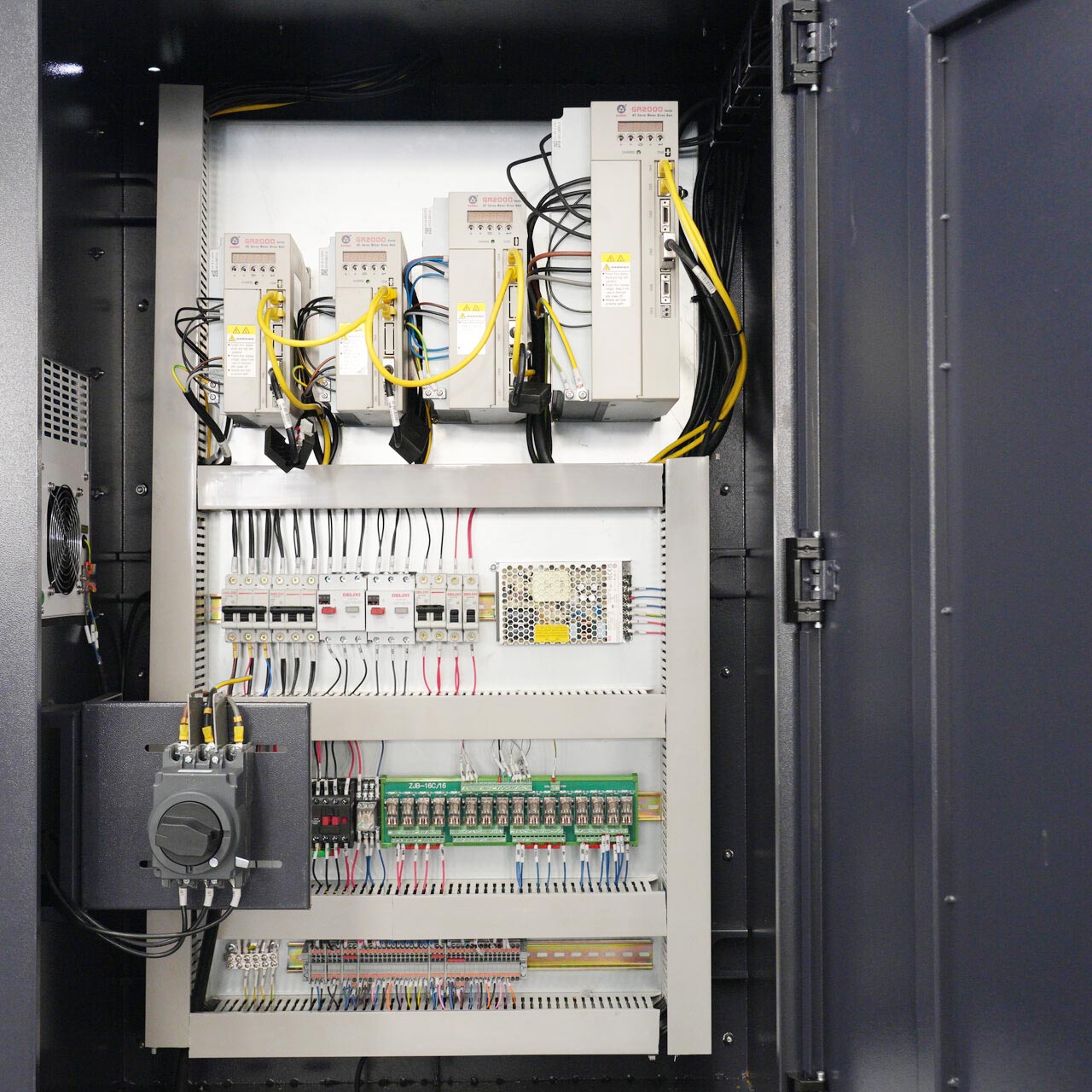

Electrical Control Cabinet

The wiring and heat dissipation of the electrical cabinet directly affect the stability and service life of the machine tool.
The layout shown is layered and modular, separating strong and weak currents to reduce electromagnetic interference, a typical configuration for high-end domestic machining centers.

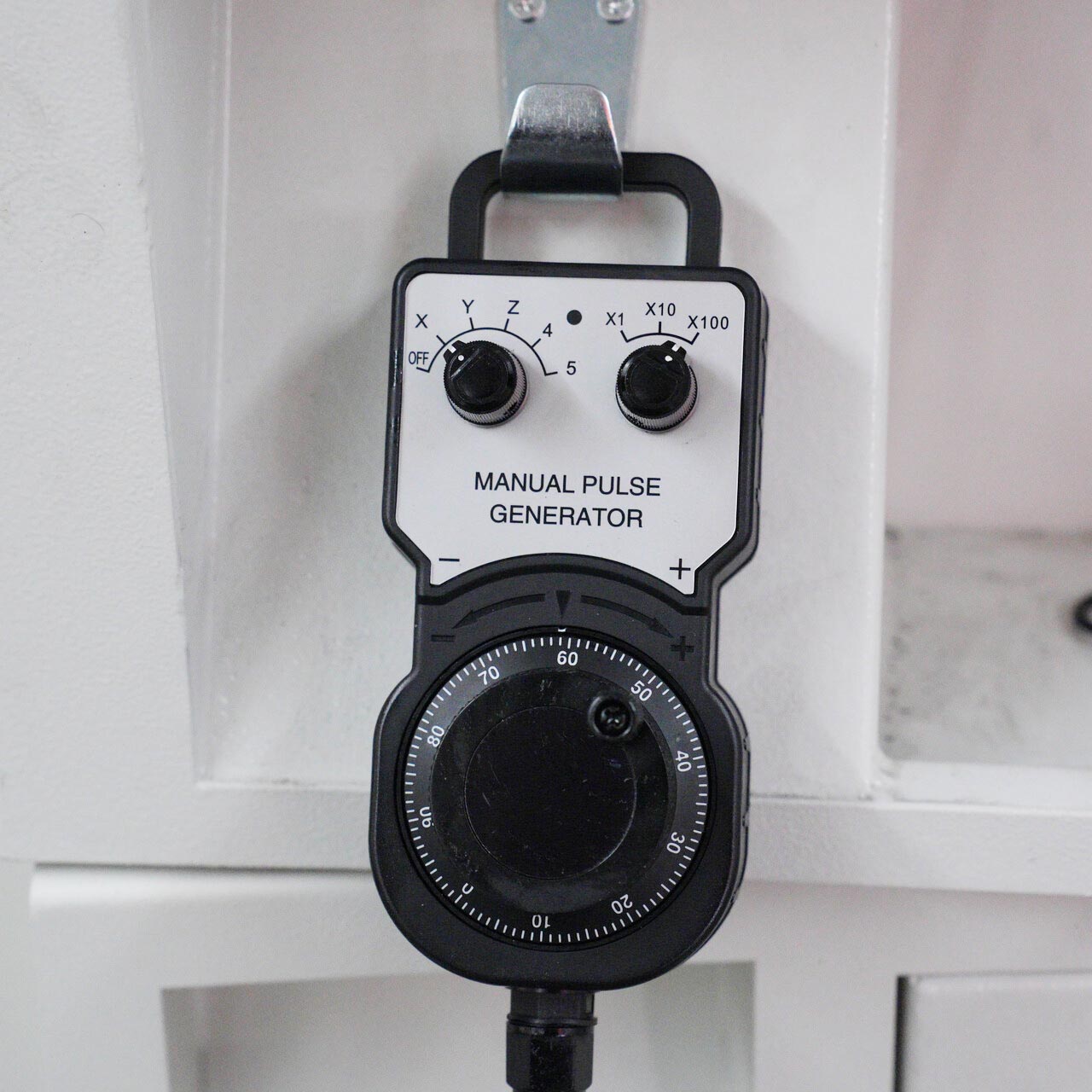

Manual Pulse Generator

Portable handheld design for close-range operation of workpieces away from the machine panel;
Stable pulse signal with high displacement accuracy;
The shell is shockproof and durable in oily workshop environments;
Multi-axis and multi-magnification switching, balancing fine adjustment and rapid movement.

Select Configuration

Optional Control System

------

Processable Parts

Box Type

Gearbox Case / Gearbox Shell: Multi-hole System, Inner Cavity, Installation Surface Pump Body / Valve Body: Irregular Cavity, Flow Path Hole, Flange Surface

Plate Type / Disk Type / Flange Type

Installation Large Plate / Panel: Array Hole, Countersink Hole, Flat Groove Flange Plate / End Cap: Round Disk, Evenly Distributed Bolt Hole, Stop

Irregular Bracket / Support Type

Mechanical Bracket / Connection Seat: L/T Type, Multi-step, Lateral Hole Bearing Seat / Vertical Support: Half-round / Full-round Bearing Hole, Installation Bottom Surface

Mold Type (Main Force of Vertical Machining Center)

Plastic Model Cavity / Core: Deep Cavity, Ribs, Curved Surface Mold Frame / Ejector Plate: Array Guide Post Hole, Ejector Hole

Complex Curved Surface Type (Three-axis / Five-axis)

Impeller / Blade: Spatial Twisted Surface, Flow Path Turbine / Fan Wheel: Multi-blade, Annular Curved Surface

Precision Small Parts / Aluminum Shell Type

Aluminum Alloy Shell / Controller Box: Thin-walled Cavity, Interface Hole, Slot Multi-way Hydraulic Oil Block: Cross Deep Hole, Flat Sealing Position

------
