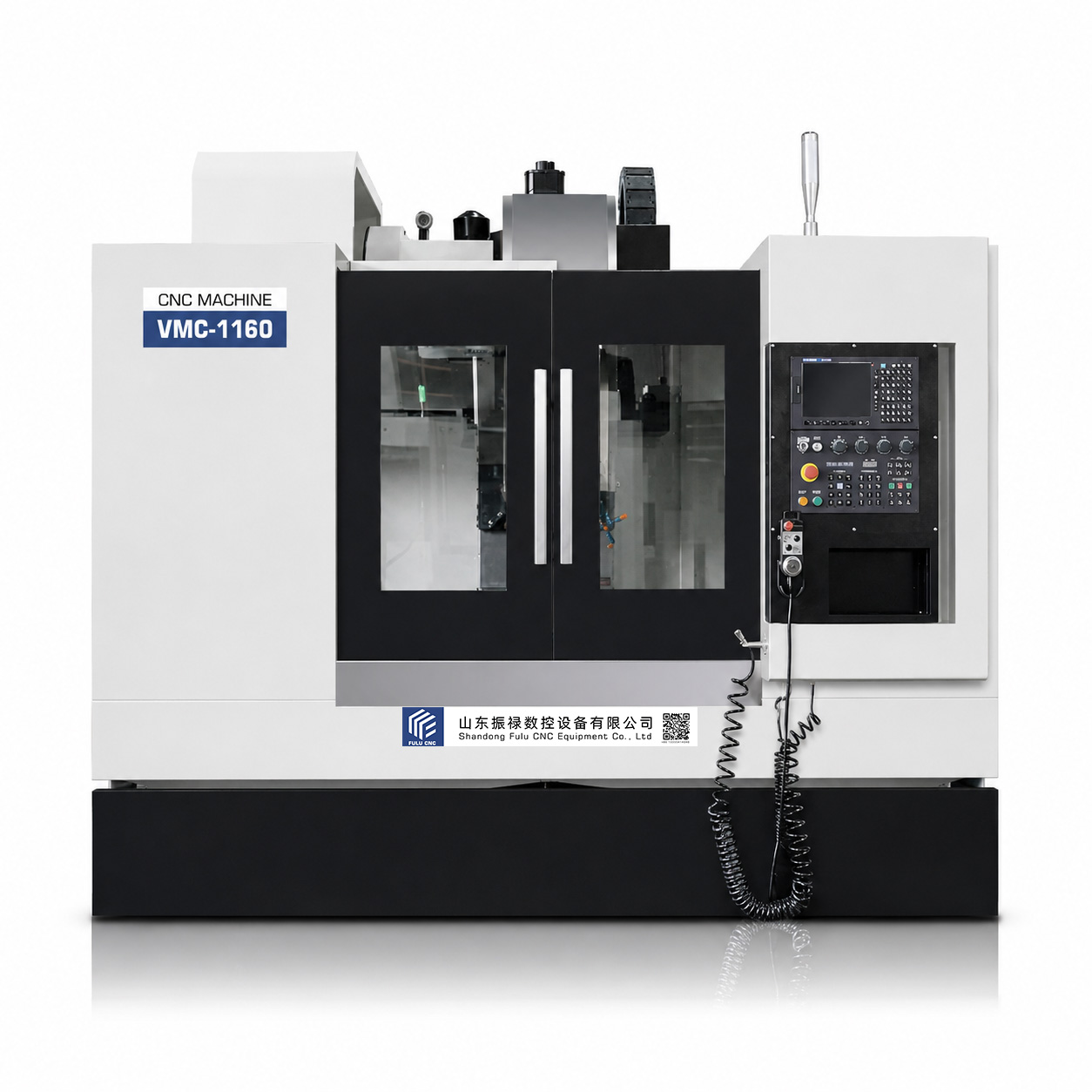

Product Introduction

1.X, Y, Z three-axis travel: 1100x600x600mm

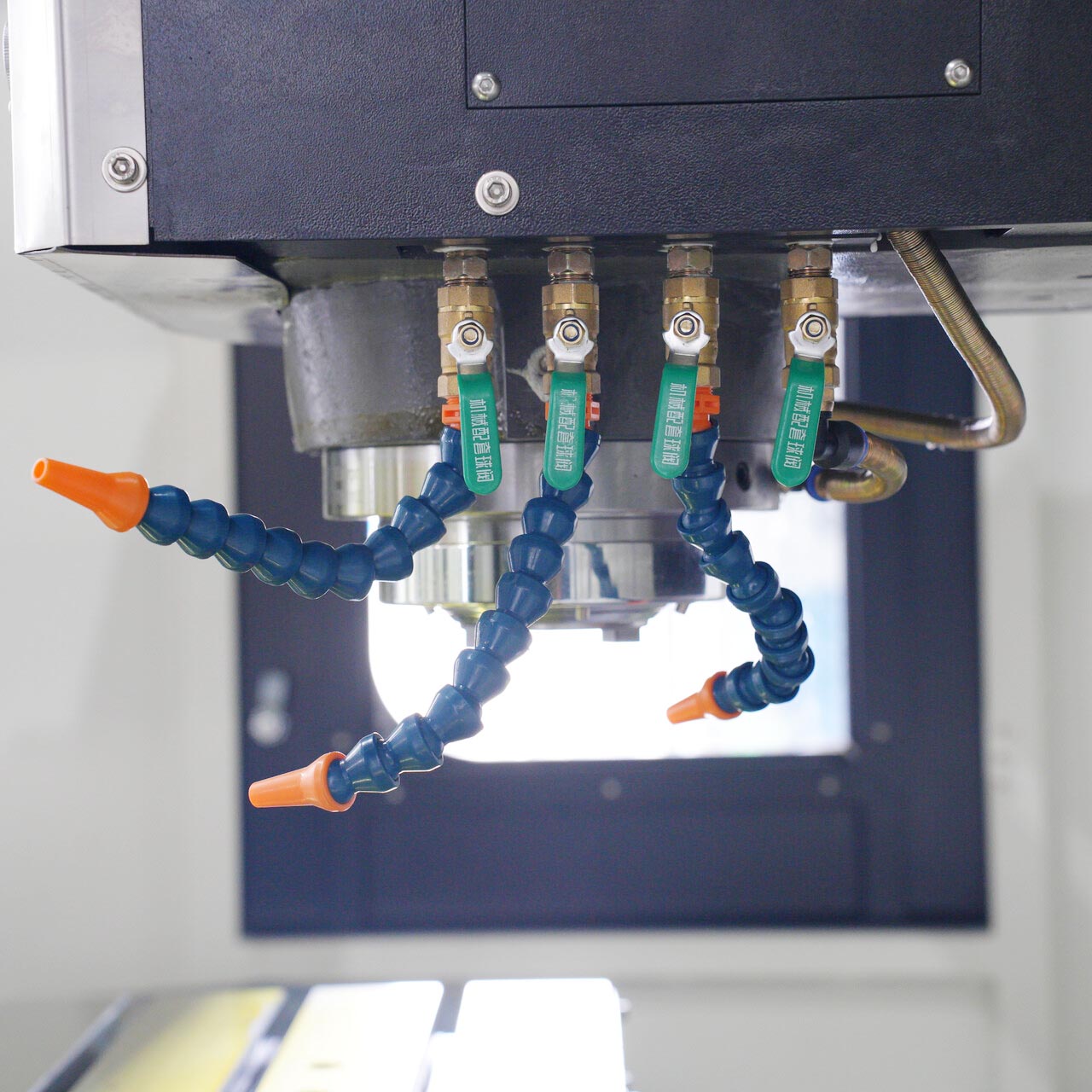

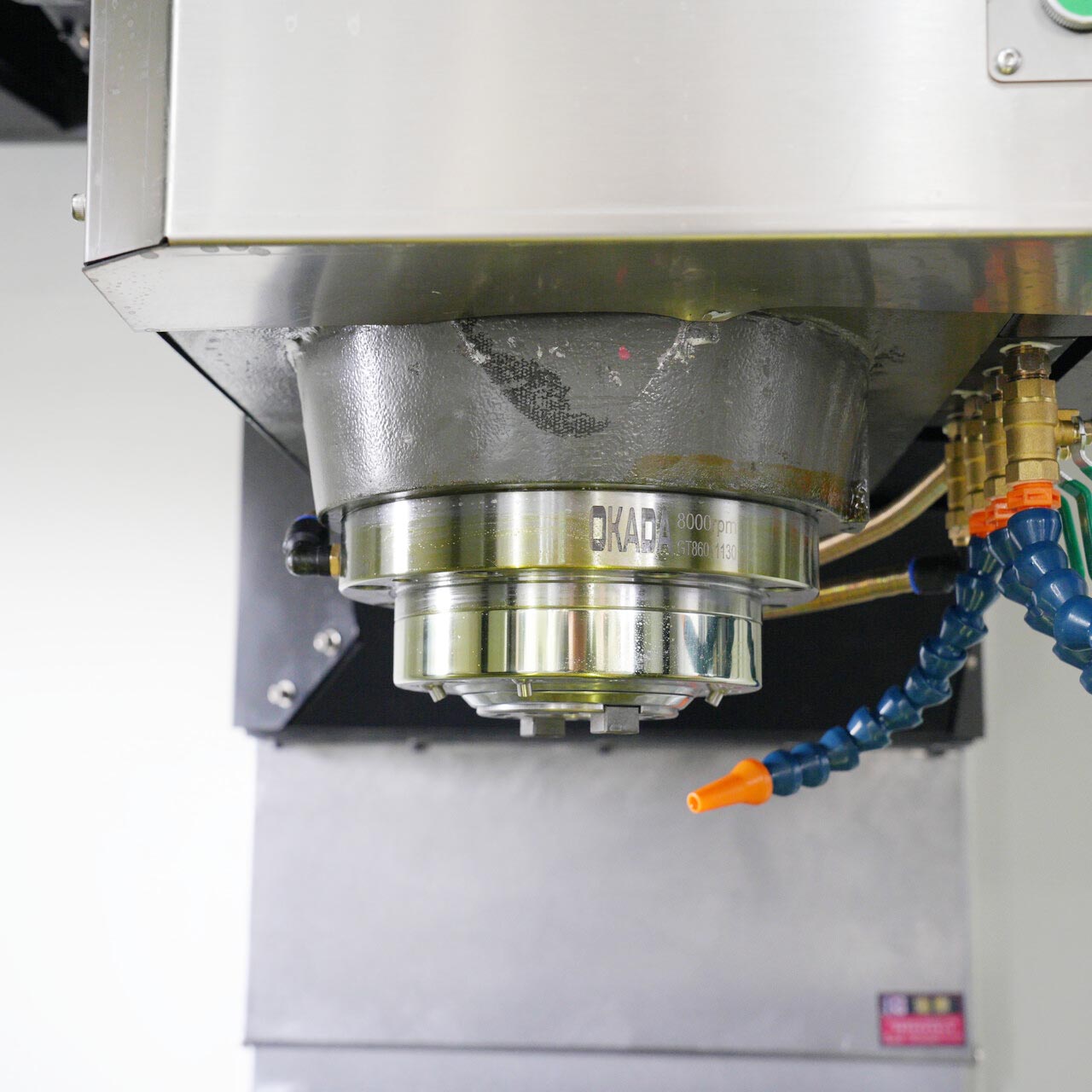

2. The spindle rotation method is belt drive with a maximum speed of 8000 RPM (circular water spray).

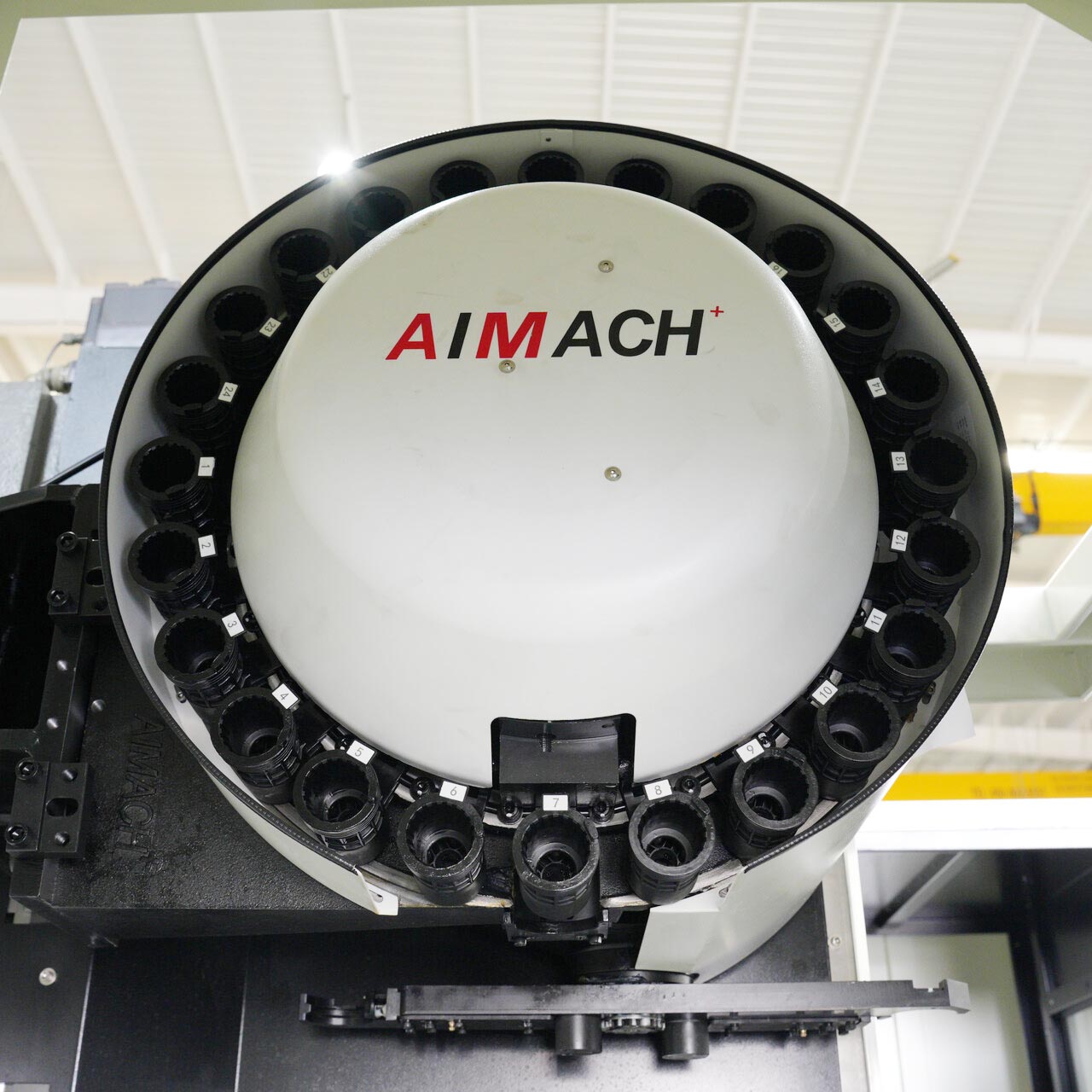

3. The tool magazine is standardly configured with a disc-type 24-tool magazine to meet customer needs.

4. The head assembly is a heavy-duty box structure with reinforced internal ribs for high rigidity.

5. The spindle cutting method uses a pneumatic mechanism, ensuring even force on the spindle during cutting to extend bearing life.

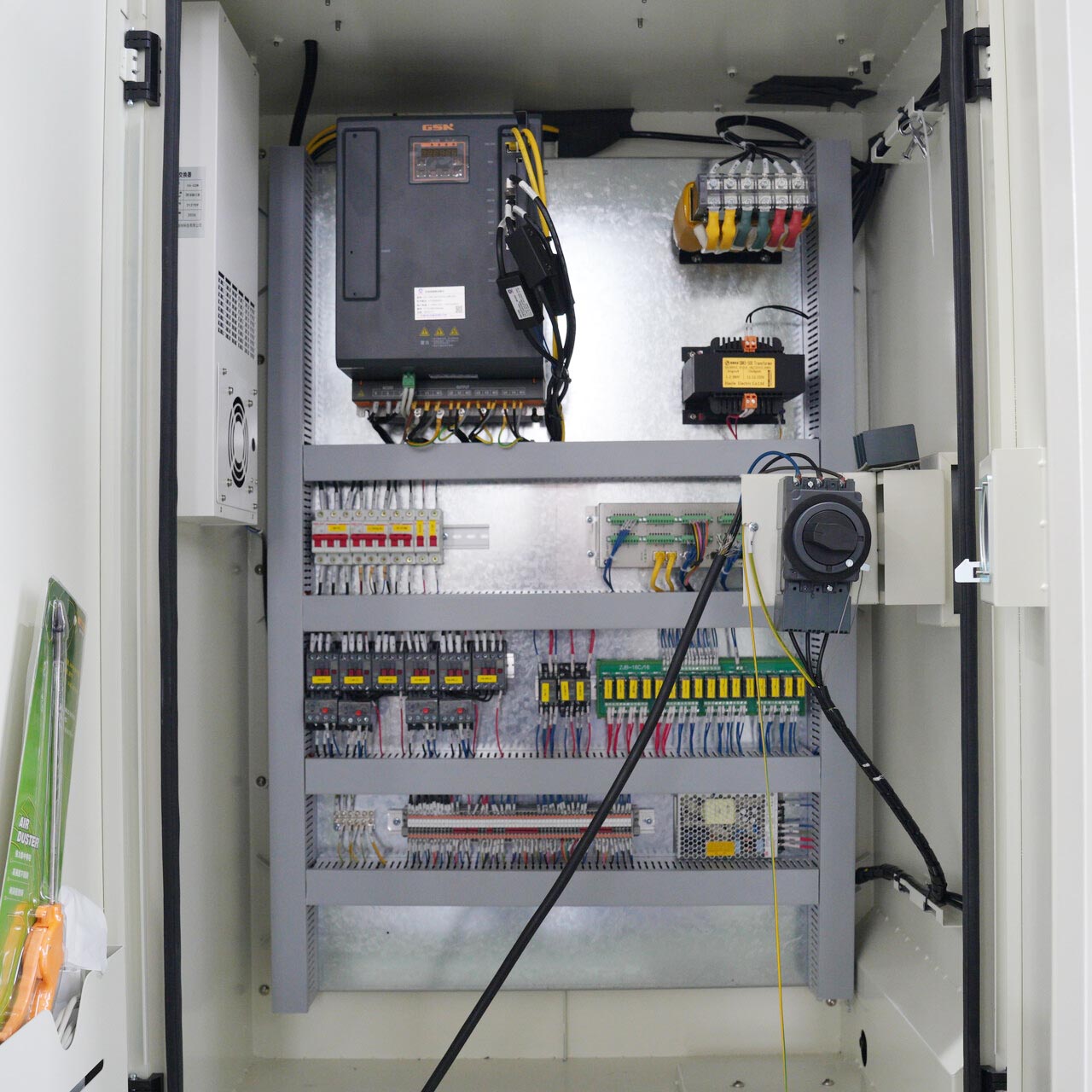

6. The electrical box adopts an internal isolation design, separating the heat source part of the controller, using a heat exchanger for cooling at the front to prevent external dust from entering the electrical box; the rear side uses a fan for cooling the heat plate.

7. The three axes use high-precision screws combined with precision screw nuts and pre-tensioning devices to ensure that the machine's backlash and thermal deformation remain low over time.

8. The X, Y, Z axes (X/Z axes have 6 sliders) use roller-type linear guides, which have high rigidity, low noise, and can achieve rapid displacement and optimal cycle accuracy.

9. All finished products undergo laser positioning correction and circular testing to ensure optimal positioning accuracy and servo characteristics, and the machine undergoes strict inspection measures before shipment to ensure long-term stability of various accuracies.
